Glass Standoff Ø50 × 40 mm for Glass Balustrade, M10
The Glass Standoff Ø50 × 40 mm for Glass Balustrade, M10 (MOD 2340) is a side-mount glass standoff with a Ø50 mm head, 40 mm stand-off and M10 bolt. The longer stand-off leaves room for cladding, render or a drip edge between the slab and the glass.
MOD 2340 is listed on page 27 of the UNIKIM 2024 catalogue. It belongs to our range of glass standoffs for frameless glass railings and balustrades.
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 2340 (catalogue p. 27) |
| Type | Round glass standoff, flat or curved back |
| Head diameter D | Ø50 mm |
| Stand-off H (wall to glass) | 40 mm |
| Overall length L | 80 mm |
| Glass thickness | 8–18 mm (tempered or laminated) |
| Fixing bolt | M10 threaded bolt |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Back | Head D (mm) | Stand-off H (mm) | Length L (mm) |
|---|---|---|---|---|

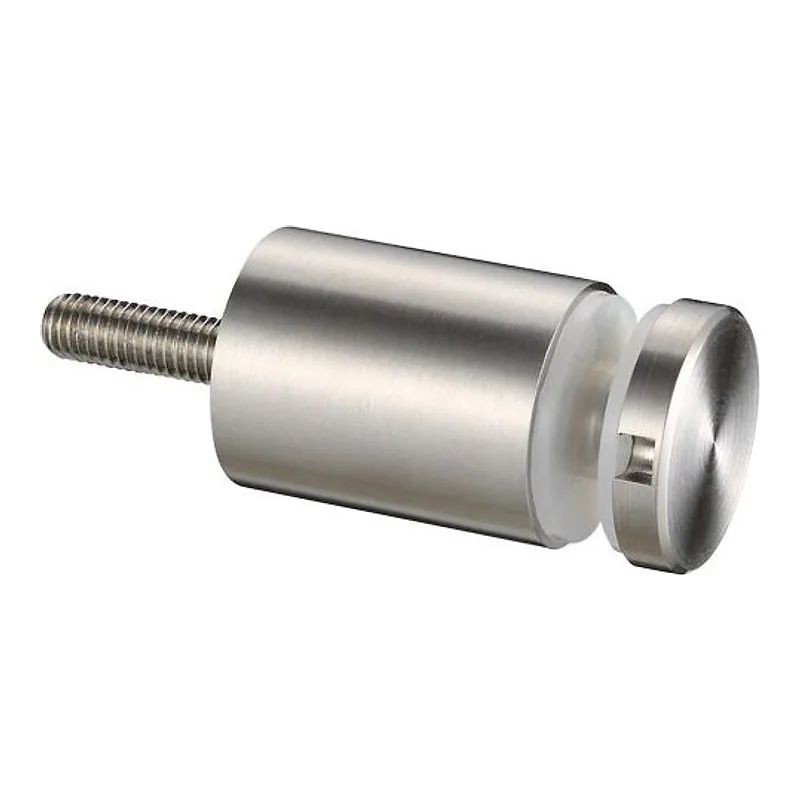

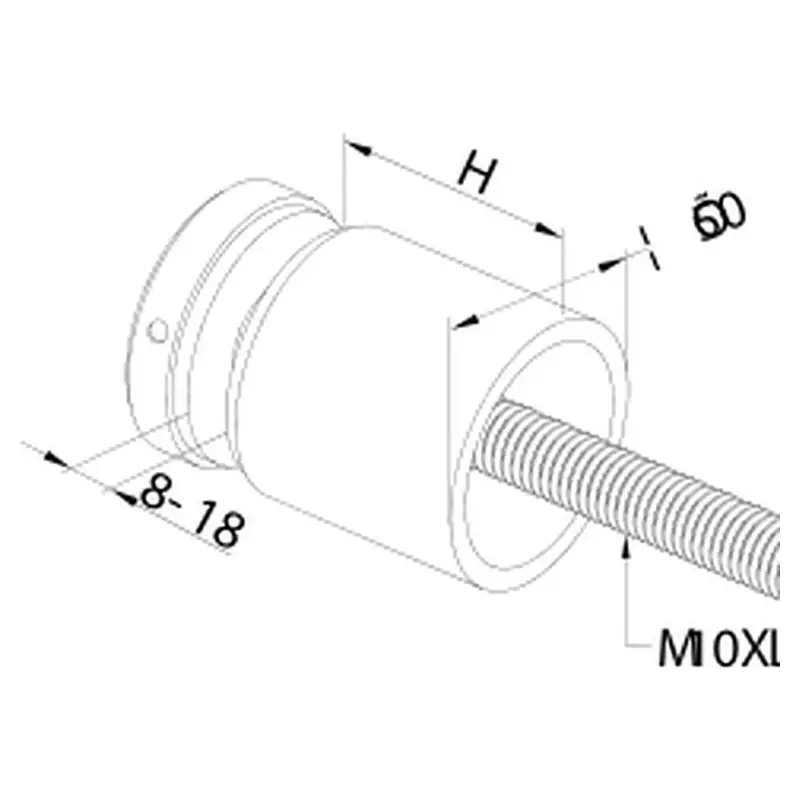

| A2.2340.00.S | Flat back | Ø50 | 40 | 80 |

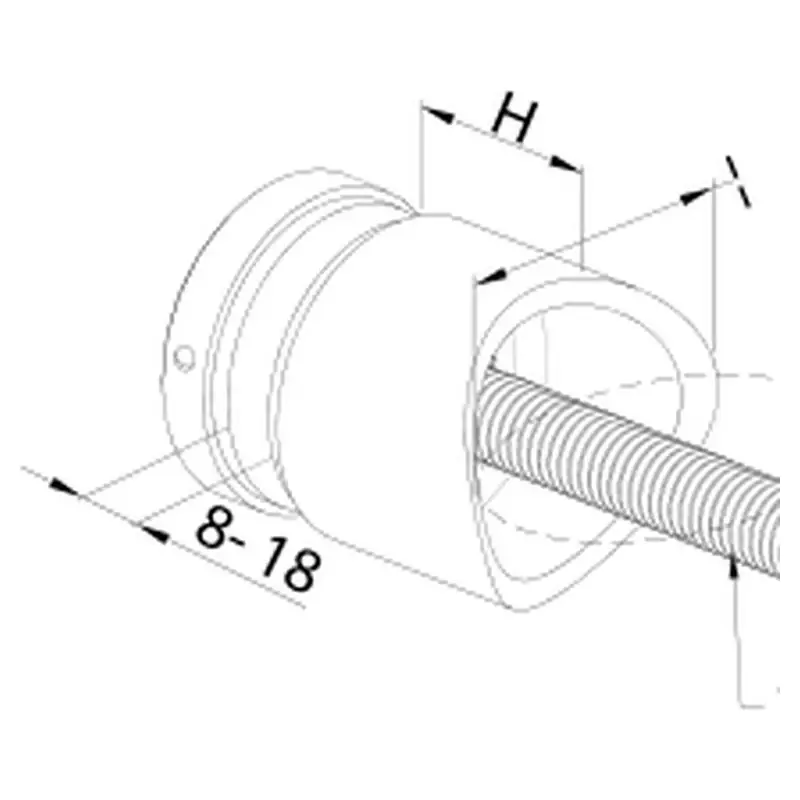

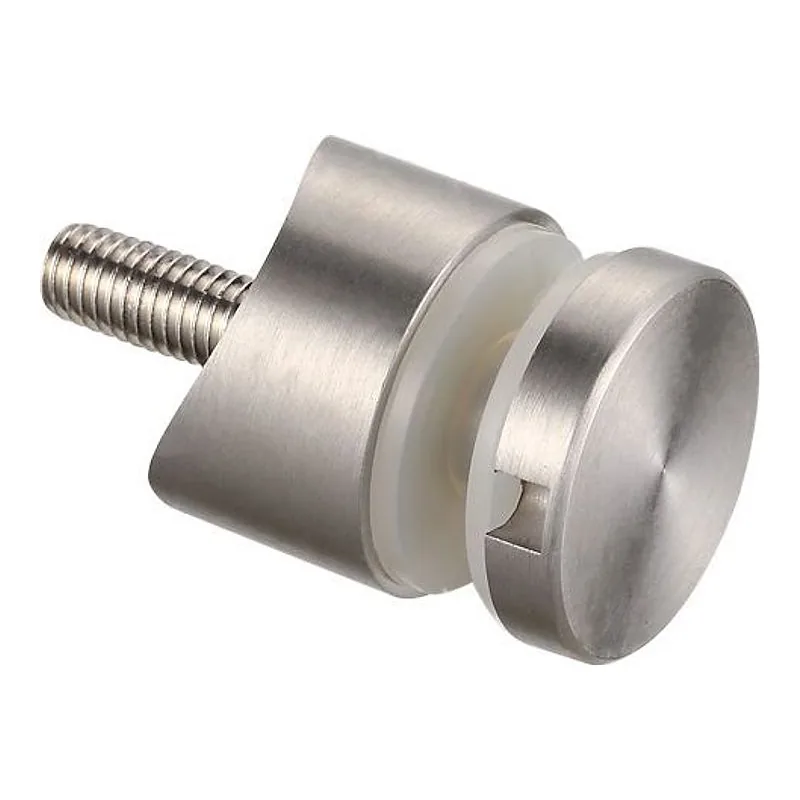

| A2.2340.42.S | Curved, tube Ø42.4 | Ø50 | 40 | 80 |
| A2.2340.50.S | Curved, tube Ø50.8 | Ø50 | 40 | 80 |
For AISI 316 replace A2 with A4.
Applications
Balconies and terraces with cladding or render, stair stringers, mezzanines and pool fences.
Installation notes
- Drill the glass with the hole size shown in the catalogue for this model, and always use tempered or laminated safety glass.
- Fix the standoff with an anchor that suits the base: chemical anchor in concrete, through-bolt in steel, or the matching screw in timber.
- Keep the rubber or PVC washers between the glass and the metal; steel must never touch the glass directly.
- The number of standoffs per panel and the edge distances depend on the glass size and the load – ask an engineer for public or commercial projects.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Standoffs, spigots, clamps and handrail parts can be shipped together, with OEM packing on request. Browse all glass standoffs.
Related products
- Glass Railing Standoff Ø50 mm (MOD 2200)
- Stainless Steel Standoff Ø50 × 30 mm (MOD 2330)
- Glass Standoff Ø50 × 50 mm (MOD 2350)
- Matte Black Glass Standoff Ø50 mm (MOD 2330-B)
- Adjustable Glass Railing Standoff (MOD 2920)
FAQ
What is a glass standoff?
A round or square stainless steel fitting that bolts through the glass and holds it a set distance from the wall, slab or post.
Which glass thickness does MOD 2340 fit?
8–18 mm (tempered or laminated).
Is MOD 2340 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Can I order samples or OEM packing?
Yes – contact us with the model, size and quantity.
Need a price? Request a quotation with the model number, size, quantity and finish.
