Round Glass Clamp Ø60 mm, Single-Sided – overview

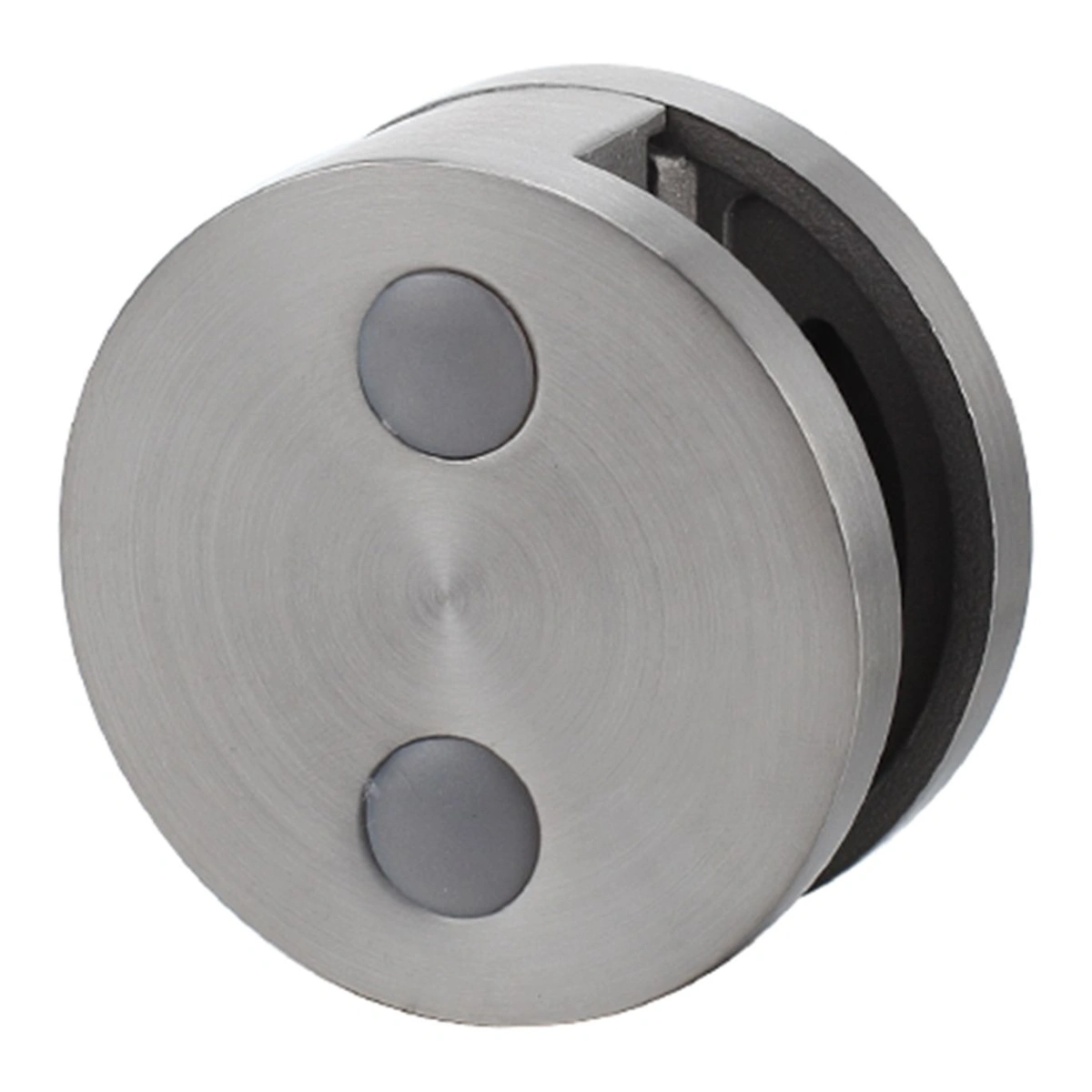

The Round Glass Clamp Ø60 mm, Single-Sided (MOD 2030) is a single-sided round glass clamp: it holds one glass panel to a post, a wall or a round handrail tube with a clean round face and two screw caps.
MOD 2030 is listed on pages 39, 45 and 47 of the UNIKIM 2024 catalogue. Its double-sided twin is the Round Glass Clamp Ø60 mm, Double-Sided (MOD 2031), which holds two panels on one post.
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Model | MOD 2030 (catalogue p. 39, 45, 47) |
| Shape / size | Round, Ø60 mm, single-sided |
| Single glass (mono) | 6, 8, 10, 12 mm |
| Laminated glass (VSG) | 6.76, 8.76, 10.76, 12.76 mm |
| Rubber inserts | A9.2030.06.R – A9.2030.13.R (6–12.76 mm) |
| Mounting | Flat back, or curved back for Ø33.7, 38.1, 42.4, 48.3, 50.8 mm tubes |
| Material | AISI 304 (A2) / AISI 316 (A4) stainless steel |
| Finishes | Brushed (satin), polished, matte black, white, raw |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Back / mounting |
|---|---|
| A2.2030.00.S | Flat – walls, flat or square posts |
| A2.2030.33.S | Round tube Ø33.7 mm |
| A2.2030.38.S | Round tube Ø38.1 mm |
| A2.2030.42.S | Round tube Ø42.4 mm |
| A2.2030.48.S | Round tube Ø48.3 mm |
| A2.2030.50.S | Round tube Ø50.8 mm |
For AISI 316 replace A2 with A4. For the finish replace the last letter: S brushed, M polished, B black, W white, R raw.
Applications
Glass balustrades at end posts and walls on stairs, landings, balconies and mezzanines; classic round-post railings with Ø42.4 or Ø48.3 mm tubes; residential and commercial interiors.
Installation notes
- Glass panel height in the catalogue test set-up: 800–1,000 mm; minimum panel width 500 mm.
- Gap from handrail to top of glass, and from floor to bottom of glass: 10–50 mm (up to 120 mm with edge protection).
- Fit the clamps 100–150 mm from the top and bottom edges of the panel.
- Use the rubber insert that matches your exact glass thickness – see glass clamp rubber inserts.
Single-sided or double-sided?
Use the single-sided MOD 2030 at end posts and walls, where only one panel is fixed. Use the double-sided Round Glass Clamp Ø60 mm, Double-Sided on intermediate posts where two panels meet.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- Round Glass Clamp Ø60 mm, Double-Sided
- Square Glass Clamp 55×55 mm
- Square Glass Clamp 45×45 mm
- Glass Clamp Rubber Inserts
FAQ
What is a single-sided round glass clamp?
A round clamp with a glass slot on one side only. It fixes one panel to a post, wall or tube; MOD 2030 has a 60 mm diameter.
Which glass thickness fits MOD 2030?
6, 8, 10 and 12 mm single glass and 6.76, 8.76, 10.76 and 12.76 mm laminated glass. The catalogue lists rubber inserts A9.2030.06.R to A9.2030.13.R.
Which tube sizes does it fit?
Flat surfaces (A2.2030.00.S) and round tubes of 33.7, 38.1, 42.4, 48.3 and 50.8 mm.
What is the difference to MOD 2031?
MOD 2031 is the double-sided version for two panels on one post; MOD 2030 holds a single panel.
Need a price? Request a quotation with the model number, quantity, grade and finish.
