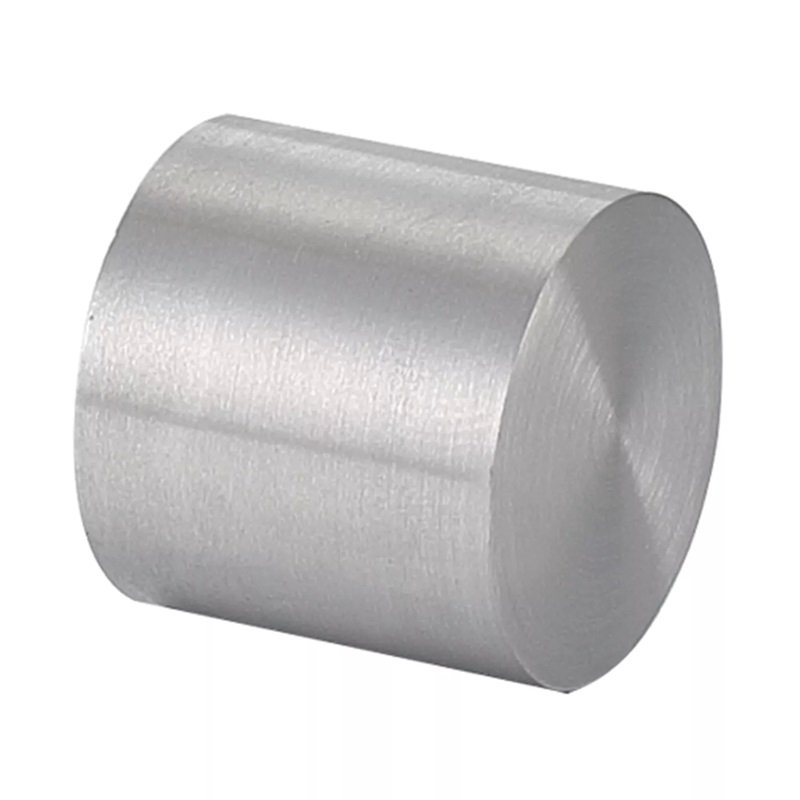

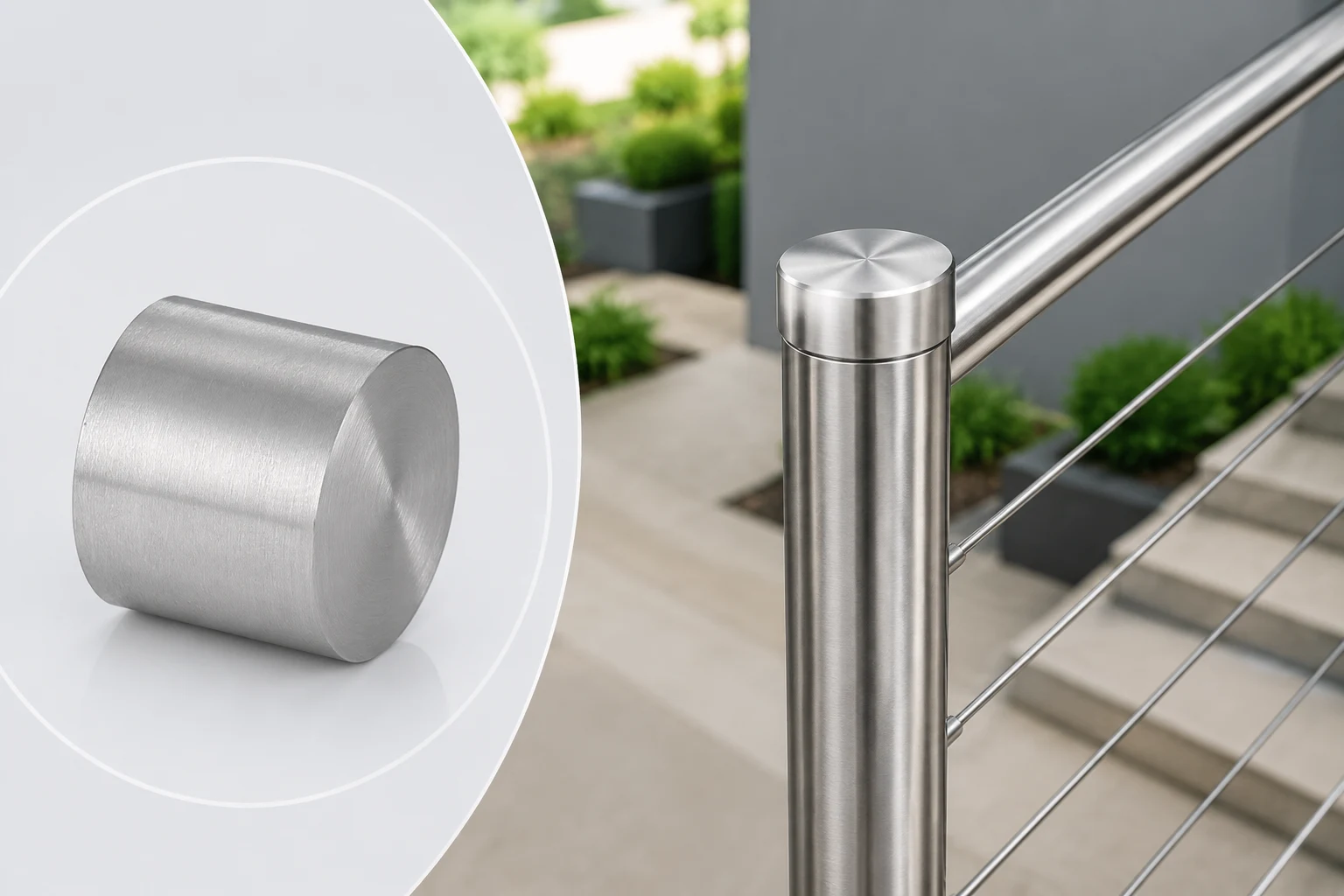

Finishing a railing project requires attention to the smallest details. The UNIKIM Stainless Steel Railing Pipe Cover End Cap provides a clean, flush finish to open handrail posts while protecting the internal structure from dust, moisture, and debris. Built for both structural integrity and architectural appeal, this push-fit end cap eliminates sharp pipe edges on staircases, balconies, and commercial walkways.
Crafted from premium marine-grade stainless steel posts, the cap resists rust, corrosion, and heavy wear, making it an ideal choice for high-traffic indoor environments and harsh outdoor setups. The precision-engineered friction ribs ensure a tight, permanent wedge fit inside standard railing pipes without requiring specialized welding tools. Whether you are finalizing a sleek residential glass balustrade or a heavy-duty industrial safety guardrail, this end cap delivers a polished, professional look that lasts for decades.

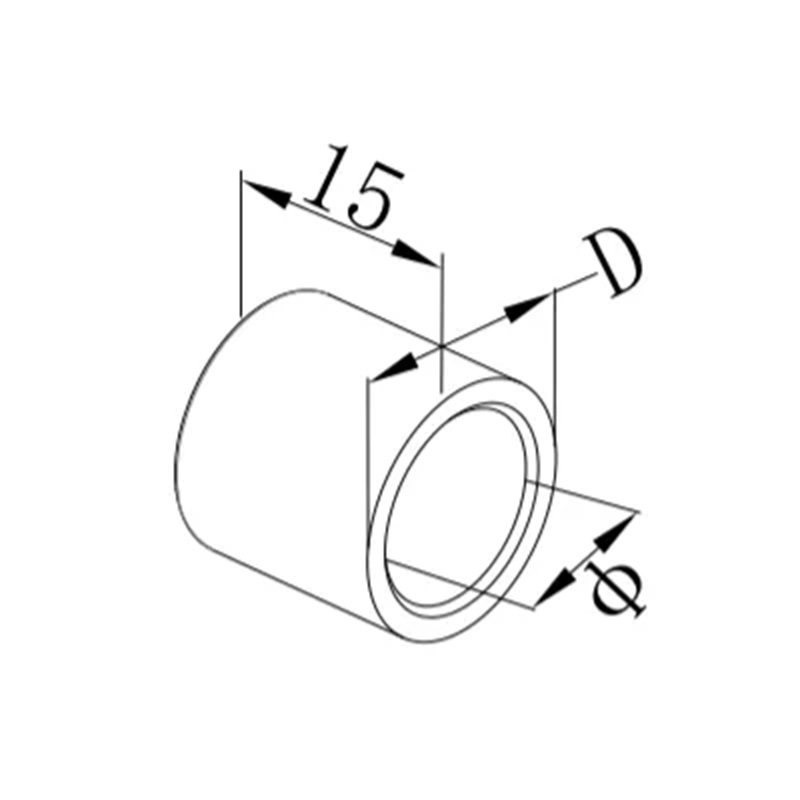

| Item No | D(mm) | Φ(mm) |
| 1737.10 | 14 | 10 |
| 1737.12 | 16 | 12 |
| 1737.13 | 16 | 13 |
| 1737.14 | 18 | 14 |
| 1737.16 | 20 | 16 |
Application
Residential Architecture: Modern interior staircases, outdoor decks, and balcony glass balustrades.
Commercial Properties: Office building handrails, shopping mall walkways, and public transit guide rails.
Industrial Facilities: Heavy-duty safety barriers, platform guardrails, and warehouse zoning pipes.
Material
AISI 304 Stainless Steel: Best for standard indoor installations and mild outdoor environments.
AISI 316 Stainless Steel: Maximum marine-grade corrosion resistance, specifically built for coastal regions and high-moisture outdoor applications.
Surface Finish: Available in high-gloss mirror polished or sleek satin brushed variants.
Size & Specifications
| Specification Metric | Detail / Measurement |
| Available Diameters | 38.1mm, 42.4mm, 48.3mm, 50.8mm |
| Wall Thickness Fit | 1.5mm to 2.0mm standard pipe gauge |
| Profile Type | Domed, flat flush, or ergonomic semi-spherical |
| Installation Method | Knock-in friction wedge (no-weld plug) |
Why Choose UNIKIM?
Flawless Flush Fit: Precision machining ensures a seamless transition between the pipe surface and the cap edge.
Architectural Grade Polish: Superior surface treatment shields the metal against localized pitting, scratches, and finger markings.
Contractor-Friendly Setup: Drastically cuts down on-site installation labor hours by eliminating the need for grinding and welding.
Installation Guide
Core Benefits
Safety First: Caps off sharp, raw pipe edges to prevent painful skin snags and clothing tears.
Weather Protection: Seals the pipe interior from rainwater collection, stopping internal rust before it starts.
Aesthetic Upgrade: Provides an instant architectural finish that boosts the property valuation of metalwork installs.
FAQs
How do I choose the correct size end cap for handrail post installations?
To find the perfect fit, you must measure the outside diameter (OD) of your metal tubing and check its specific wall thickness. UNIKIM end caps rely on internal compression ribs that grip the inside walls of the pipe. Matching the outer diameter ensures the cap shoulder sits perfectly flush against the outer pipe wall without leaving unseemly ridges or overlapping lips.
Can these stainless steel end caps be used for coastal or outdoor projects?
Yes, they excel outdoors. For seaside layouts, humid pool decks, or exposed commercial spaces, we highly recommend selecting our marine-grade AISI 316 stainless steel option. Grade 316 contains added molybdenum, which prevents pitting and structural weakening caused by airborne saltwater spray, harsh industrial cleaners, and consistent exposure to rainfall or changing winter weather patterns.
Do I need specialized welding tools or adhesives to install this handrail cover?
No welding is necessary. These hardware components utilize a convenient mechanical push-fit installation system. The structural metal ribs flex slightly as you tap the cap into place with a non-marring rubber mallet, locking the unit inside the pipe core. For high-vibration public transit areas, adding a thin bead of industrial retaining compound inside the tube provides extra permanent security.
What is the aesthetic difference between satin brushed and mirror polished finishes?
A satin brushed finish features fine parallel brush lines that diffuse reflection, giving the steel a muted, contemporary look that hides fingerprints beautifully. A mirror polished finish undergoes intense mechanical buffing to create a highly reflective, chrome-like surface. Choose satin for standard minimalist office environments and mirror finishes for upscale commercial projects or coastal designs.
Will these metal pipe covers prevent internal rust and structural corrosion?
Absolutely. Leaving handrail posts completely open allows rain, morning dew, and dirt to pool inside the base of the hollow tubing. Over time, trapped moisture rots the steel framework from the inside out, causing structural loosening. Installing a sealed, high-tolerance UNIKIM end cap seals the opening entirely, extending the overall lifecycle of your entire outdoor balustrade setup.
