180° Glass Clamp 106×45 mm for 6–12.76 mm Glass

180° Glass Clamp 106×45 mm – overview

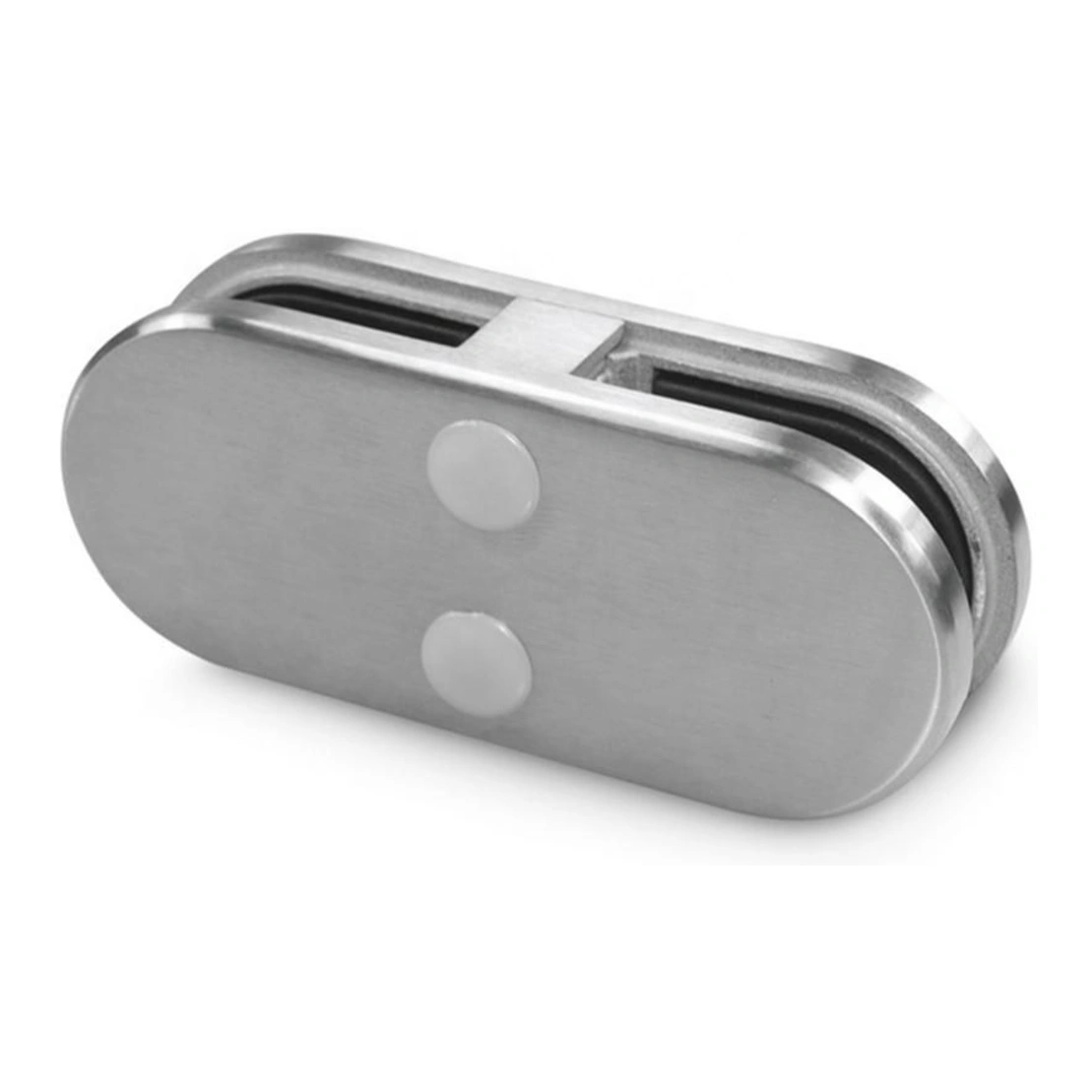

The 180° Glass Clamp 106×45 mm (MOD 2050) is a 180 degree glass clamp that joins two glass panels edge to edge in a straight line, so a frameless run can continue without a post. Its rounded 106 × 45 mm body matches the round and D-shape clamps in the range.

MOD 2050 is listed on pages 39, 43 and 47 of the UNIKIM 2024 catalogue. The 90° version for corners is the 90° Glass-to-Glass Corner Clamp (MOD 2051).

UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.

Specifications

Applications

Straight joints between frameless glass panels on balconies, terraces and stair landings; glass partitions and screens; long glass runs where a post would interrupt the view.

Installation notes

• Use at least two clamps per joint, near the top and bottom of the panels.
• Use the rubber insert for the exact glass thickness – see glass clamp rubber inserts.
• A glass-to-glass joint relies on both panels being fixed at their other edges; check panel size and loads against your local building rules.

Which glass-to-glass clamp do I need?

For straight joints in 6–12.76 mm glass use MOD 2050. For 10/12 mm glass you can also use the rectangular 180° Glass-to-Glass Connector Clamp (MOD 2054). For corners use the 90° Glass-to-Glass Corner Clamp.

Why order from UNIKIM

We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.

Related products

• 90° Glass-to-Glass Corner Clamp
• 180° Glass-to-Glass Connector Clamp
• 90° Glass-to-Glass Balcony Railing Clamp
• Glass Clamp Rubber Inserts

FAQ

What is a 180 degree glass clamp?

A clamp that holds two glass panels edge to edge in a straight line. It replaces a post between the panels.

Which glass thickness does MOD 2050 fit?

6–12 mm single glass and 6.76–12.76 mm laminated glass. The catalogue lists rubber inserts for 6–10.76 mm; ask us for 12 mm.

How big is it?

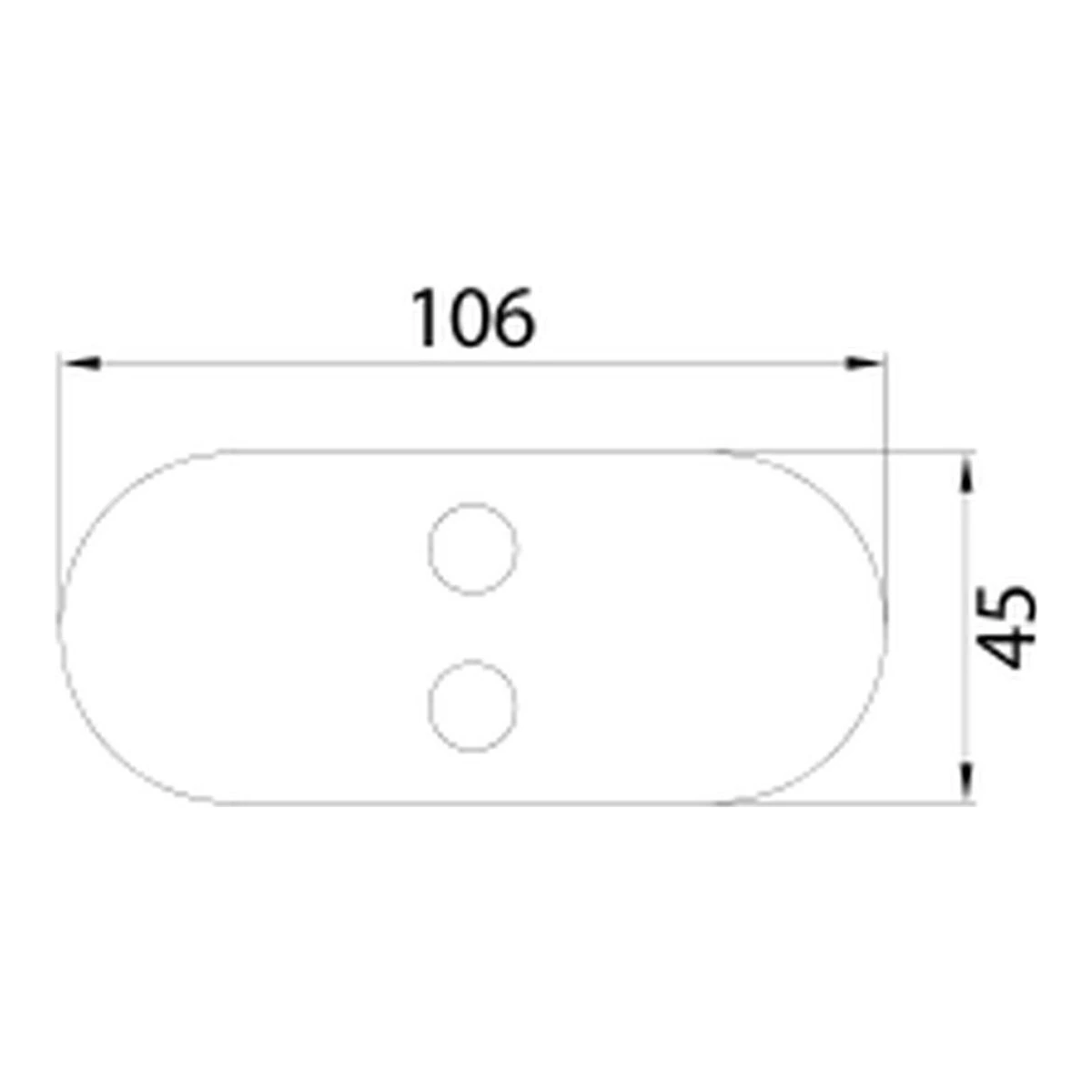

The catalogue drawing shows 106 × 45 mm.

Do I still need posts?

Not between the two joined panels, but the panels must be fixed at their other edges, for example with clamps on posts or a wall.
