Round Glass Clamp Ø60 mm with Hex Screws for 6–12.76 mm Glass

Round Glass Clamp Ø60 mm with Hex Screws

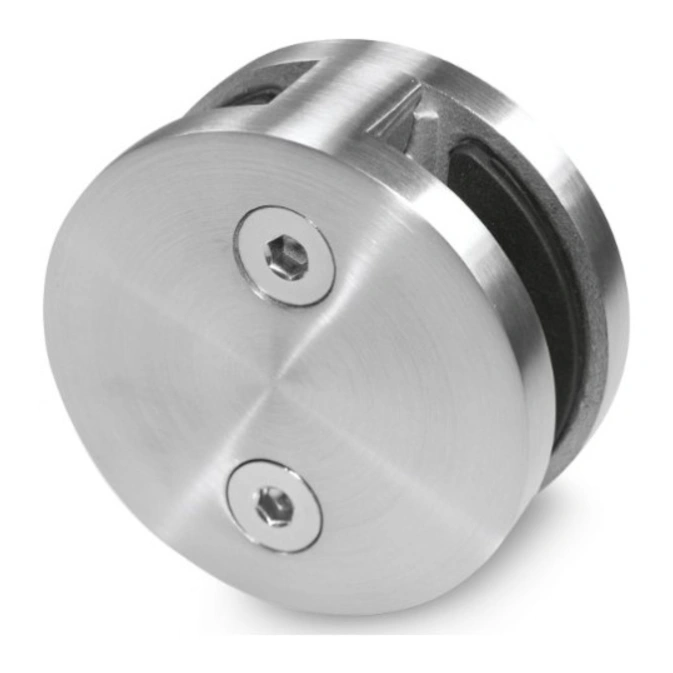

The Round Glass Clamp Ø60 mm with Hex Screws (MOD 2032) is a round glass clamp with screws visible on the face. Two hex socket screws press the clamp plates onto the glass, giving a technical look that suits modern stainless steel railings.

MOD 2032 appears in the glass-thickness table on page 39 of the UNIKIM 2024 catalogue with the other Ø60 mm models, MOD 2030 and MOD 2031.

UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.

Specifications

Applications

Modern glass balustrades on stairs, balconies and mezzanines where a visible-screw design is wanted; commercial interiors, shops and offices; replacement of existing Ø60 mm clamps with exposed screws.

Installation notes

• Glass panel height in the catalogue test set-up: 800–1,000 mm; minimum panel width 500 mm.
• Gap from handrail to top of glass, and from floor to bottom of glass: 10–50 mm (up to 120 mm with edge protection).
• Fit the clamps 100–150 mm from the top and bottom edges of the panel.
• Use the rubber insert that matches your exact glass thickness – see glass clamp rubber inserts.

Hex screws or screw caps?

MOD 2032 shows its hex screws. If you prefer a smooth face with screw caps, choose the Round Glass Clamp Ø60 mm, Single-Sided (MOD 2030) or the double-sided Round Glass Clamp Ø60 mm, Double-Sided (MOD 2031).

Why order from UNIKIM

We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.

Related products

• Round Glass Clamp Ø60 mm, Single-Sided
• Round Glass Clamp Ø60 mm, Double-Sided
• Square Glass Clamp 55×55 mm
• Glass Clamp Rubber Inserts

FAQ

What makes MOD 2032 different?

It is a Ø60 mm round clamp with two hex socket screws visible on the face, instead of covered screws.

Which glass thickness fits?

6, 8, 10 and 12 mm single glass and 6.76, 8.76, 10.76 and 12.76 mm laminated glass, as listed in the catalogue table.

Which posts does it fit?

Tell us the post: flat surface or round tube diameter (33.7–50.8 mm), and we will confirm the matching back.

Is AISI 316 available?

Yes – AISI 316 (A4) for outdoor, pool and coastal project.

Need a price? Request a quotation with the model number, quantity, grade and finish.
