Single-Sided Rectangular Glass Clamp

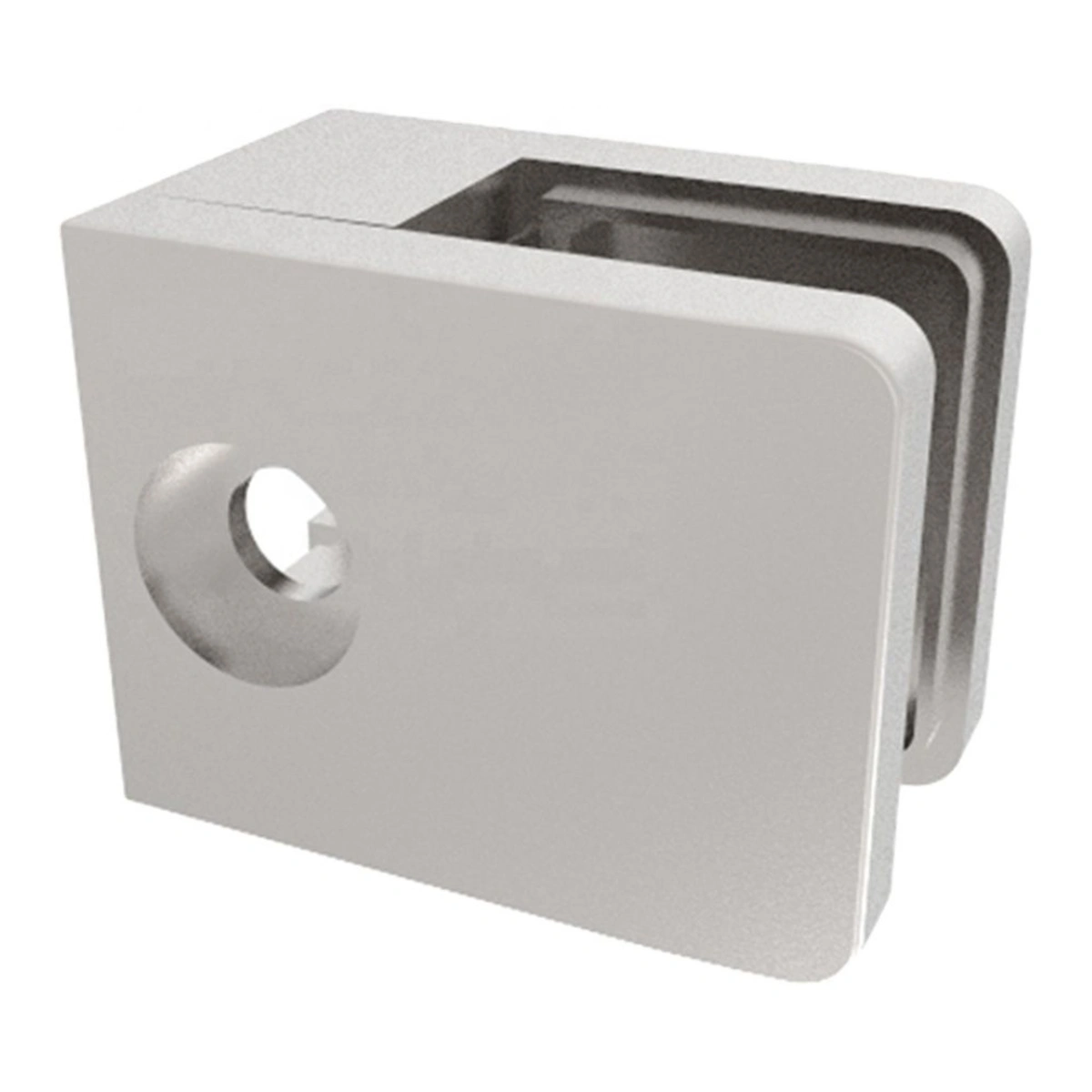

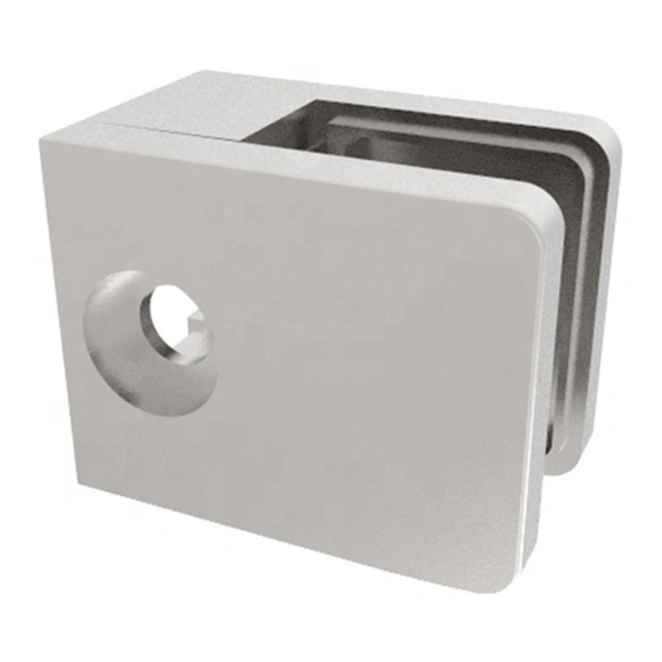

The Single-Sided Rectangular Glass Clamp (MOD 2052) is a 50 × 40 mm single-sided glass clamp with a countersunk fixing hole. It screws directly to a wall, floor, step or flat post and holds one glass panel along its edge.
MOD 2052 is part of the UNIKIM glass clamp library (glass clamp, single-sided). Its double-sided twin is the Double-Sided Rectangular Glass Clamp (MOD 2053).
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Model | MOD 2052 |
| Type | Rectangular glass clamp, single-sided |
| Fixing | One countersunk screw hole through the body (photo) |
| Size | 50 × 40 mm (UNIKIM drawing) |
| Glass thickness | On request – tell us your glass and we confirm the rubber |
| Material | AISI 304 (A2) / AISI 316 (A4); AISI 2205 duplex on request |
| Finishes | Brushed (satin) or polished |
| Use | Indoor and outdoor (choose AISI 316 outdoors) |
Applications
Fixing glass panels to walls, floors and steps; glass screens and partitions; shower and kitchen screens; flat-post balustrades where the clamp screws straight into the post.
Installation notes
- Fix into solid material with anchors that suit the base (concrete, masonry, steel or timber).
- Use at least two clamps per panel edge.
- Tell us the exact glass thickness so we supply the matching rubber.
Single-sided or double-sided?
Use MOD 2052 where one panel meets a wall or floor. Use the Double-Sided Rectangular Glass Clamp where two panels meet in line on one fixing point.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- Double-Sided Rectangular Glass Clamp
- 90° Wall-to-Glass Connector Clamp
- 180° Glass-to-Glass Connector Clamp
- Glass Clamp Rubber Inserts
FAQ
What is a single-sided glass clamp?
A clamp with one glass slot. MOD 2052 fixes one panel to a wall, floor or flat post with a countersunk screw.
How big is MOD 2052?

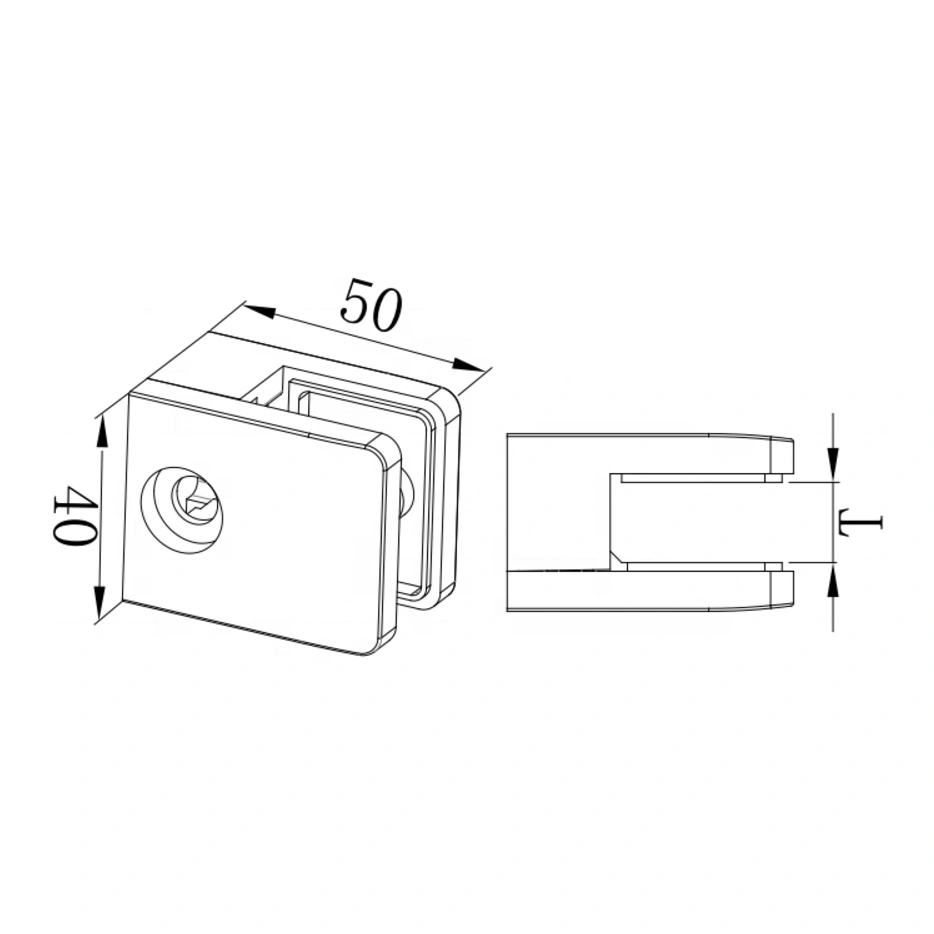

The UNIKIM drawing shows 50 × 40 mm, with a slot for the glass and one countersunk fixing hole.
Which glass thickness fits?
Tell us your glass thickness and we confirm the matching rubber and send the drawing.
Can it be used outdoors?
Yes, in AISI 316 stainless steel; AISI 2205 duplex is available on request for very aggressive environments.
Which finishes are available?
Brushed (satin) or polished.
Need a price? Request a quotation with the model number, quantity, grade and finish.
