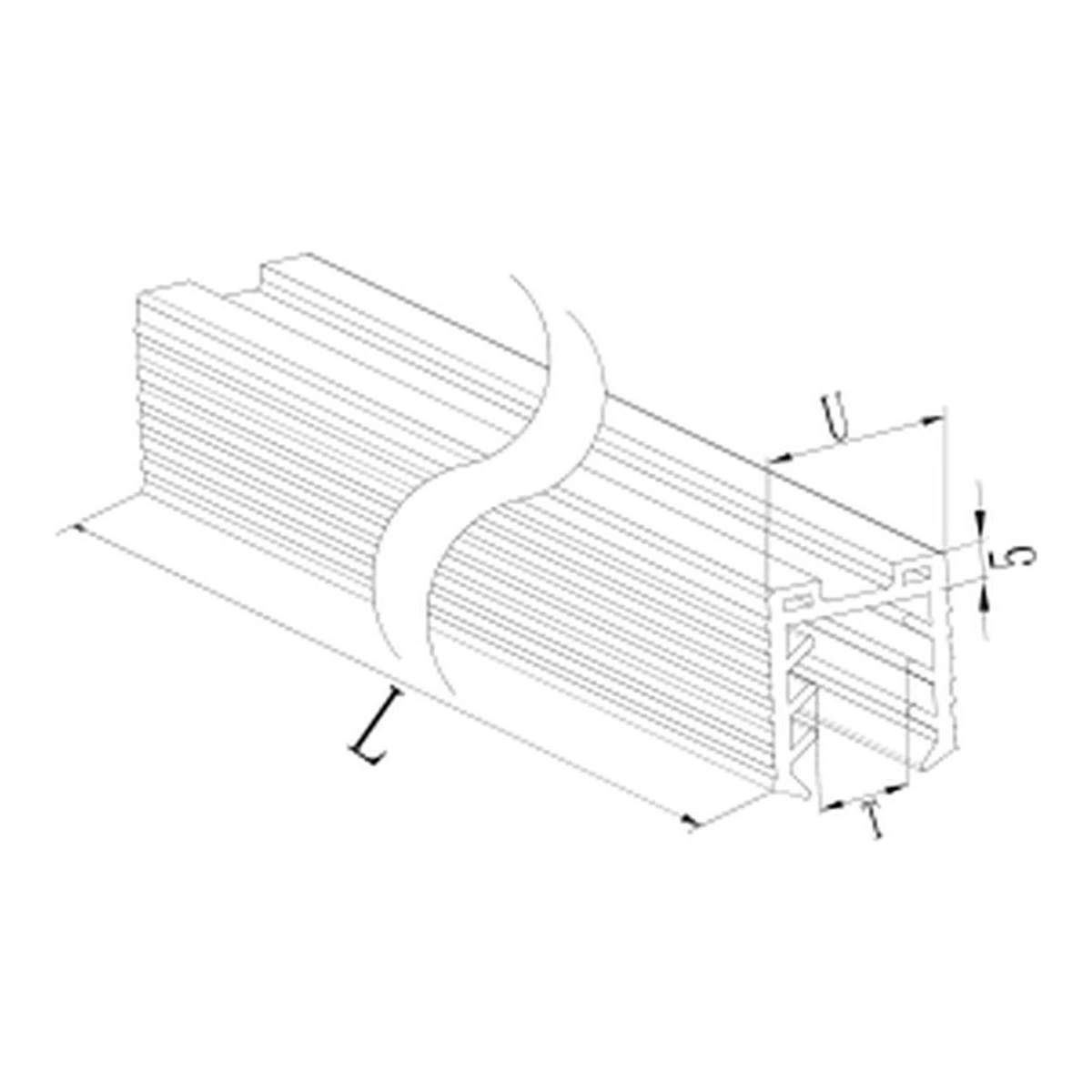

Slot Tube Rubber Strip
The Slot Tube Rubber Strip is the profiled rubber that sits in the slot of the UNIKIM slot tube and U cap rail. It holds the tube firmly on the glass, takes up tolerances and keeps metal away from the glass edge.
The UNIKIM 2024 catalogue (pages 13 and 17) lists three widths – MOD 0842 for 24 mm slots (tube Ø42.4), MOD 0848 for 27 mm slots (Ø48.3) and MOD 0860 for 34 mm slots (Ø60.3) – each for several glass thicknesses.
Specifications
| Models | MOD 0842 (U 24), MOD 0848 (U 27), MOD 0860 (U 34) |
| Glass thickness | 8 to 31.52 mm, see table |
| Length | 2,500 mm per strip |
| Fits | Slot tube MOD 0300 and U cap rail MOD 0301 / 0302 |
| Material | Rubber |
Article numbers by slot width and glass thickness
| Art. No. | Slot U (mm) | Glass T (mm) |
|---|---|---|
| A9.0842.08.R | 24 | 8–10.76 |
| A9.0842.11.R | 24 | 11.52–13.52 |
| A9.0842.15.R | 24 | 15 |
| A9.0842.16.R | 24 | 16.76–17.52 |
| A9.0842.19.R | 24 | 19 |
| A9.0842.22.R | 24 | 20.76–21.52 |
| A9.0848.08.R | 27 | 8–10.76 |
| A9.0848.11.R | 27 | 11.52–13.52 |
| A9.0848.15.R | 27 | 15 |
| A9.0848.16.R | 27 | 16.76–17.52 |
| A9.0848.19.R | 27 | 19 |
| A9.0848.22.R | 27 | 20.76–21.52 |
| A9.0860.08.R | 34 | 8–10.76 |
| A9.0860.11.R | 34 | 11.52–13.52 |
| A9.0860.15.R | 34 | 15 |
| A9.0860.16.R | 34 | 16.76–17.52 |
| A9.0860.19.R | 34 | 19 |
| A9.0860.22.R | 34 | 20.76–21.52 |
| A9.0860.24.R | 34 | 24.76–25.52 |
| A9.0860.31.R | 34 | 31.52 |
Applications
Glazing slot tube handrails and U cap rails on frameless glass balustrades; replacement rubber when glass is changed.
Installation notes
- Choose the strip by slot width (24, 27 or 34 mm) and your exact glass thickness.
- Press the strip into the slot over the full length, then press the tube onto the glass.
- Order one 2.5 m strip per 2.5 m of handrail.
Which strip do I need?
Example: Ø42.4 mm slot tube on 16.76 mm laminated glass → A9.0842.16.R. Ø60.3 mm tube on 25.52 mm glass → A9.0860.24.R.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Round Slot Tube Handrail (MOD 0300)
- U Cap Rail (MOD 0301)
- Slot Tube Handrail System – all parts
- Slot Tube Straight Connector (MOD 1150)
FAQ
What is a slot tube rubber strip?
The rubber profile in the slot of a slot tube handrail that grips the glass and protects its edge.
Which strip fits my tube?
0842 for Ø42.4 mm (slot 24), 0848 for Ø48.3 mm (slot 27), 0860 for Ø60.3 mm (slot 34).
Which glass thickness can I use?
From 8 to 31.52 mm – each article number covers one glass range.
How long is a strip?
2,500 mm.
Need a price? Request a quotation with the model number, size, quantity and finish.
