U Cap Rail for Glass Balustrade – overview

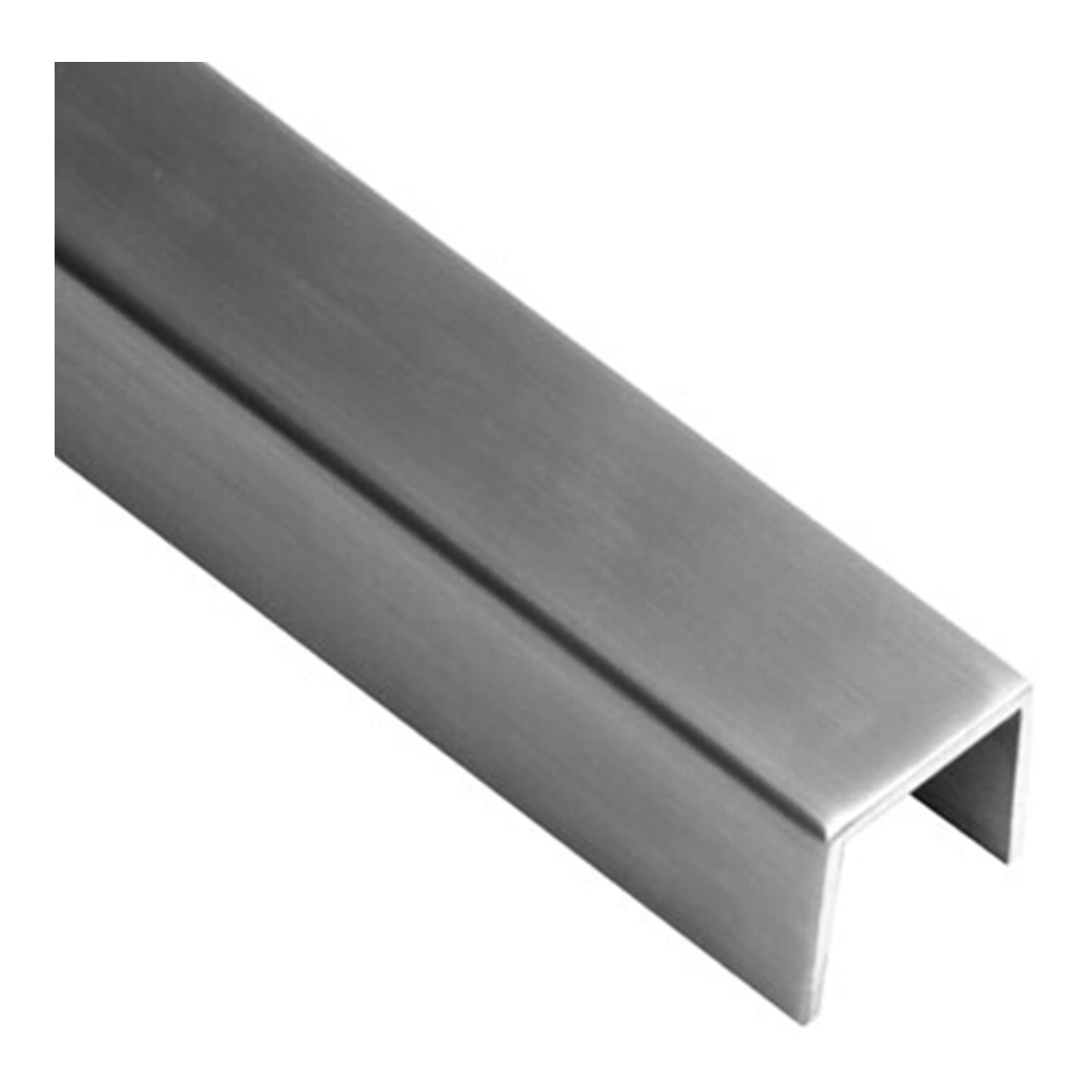

The U Cap Rail (MOD 0301) is a square stainless steel U-profile that is fitted on the top edge of the glass. It protects the edge, links the panels into one line and gives a slim, modern look compared with a round handrail.
MOD 0301 is listed on page 12 of the UNIKIM 2024 catalogue in two sizes. The matching 90° corner is the Cap Rail Corner 90° (MOD 0302); a matte black version is the Black U Cap Rail (MOD 0301).
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 0301 (catalogue p. 12) |
| A2.0301.30.S | U 24 mm, B 30 mm, H 27 mm – glass 8–21.52 mm |
| A2.0301.40.S | U 34 mm, B 40 mm, H 37 mm – glass 8–31.52 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Applications
Top edges of frameless glass balustrades and pool fences; glass partitions and screens; projects where a square, minimal top rail is preferred.
Installation notes
- Fit the rubber strip for your glass thickness into the U-profile.
- Press the cap rail onto the glass; use the 90° corner MOD 0302 at corners.
Which size?
30 × 27 mm (U 24) for glass up to 21.52 mm; 40 × 37 mm (U 34) for thick laminated glass up to 31.52 mm.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Cap Rail Corner 90° (MOD 0302)
- Black U Cap Rail (MOD 0301)
- Round Slot Tube Handrail (MOD 0300)
- Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860)
FAQ
What is a U cap rail?
A U-shaped stainless steel profile fitted on the top edge of glass to protect it and give the balustrade a finished top line.
Which glass thickness fits?
8–21.52 mm with the 30 × 27 mm size and 8–31.52 mm with the 40 × 37 mm size.
Is there a corner?
Yes – the 90° cap rail corner MOD 0302 in the same two sizes.
Is a black version available?
Yes – the matte black U cap rail (MOD 0301, finish B).
Need a price? Request a quotation with the model number, size, quantity and finish.
