Square Glass Standoff 50 × 50 mm, Single, for 8–17.52 mm Glass – overview

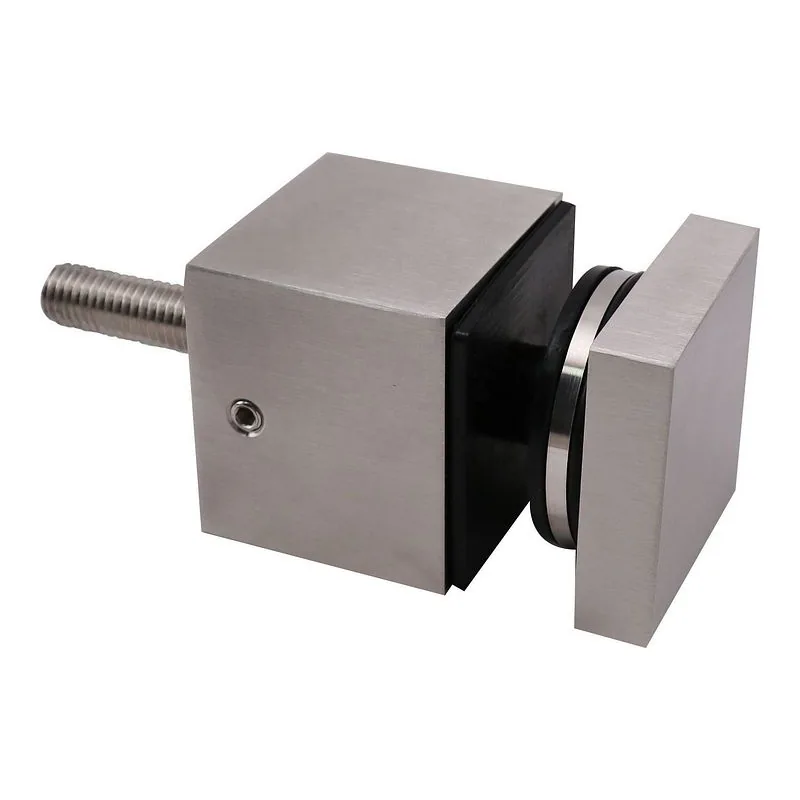

The Square Glass Standoff 50 × 50 mm, Single, for 8–17.52 mm Glass (MOD 2921) is a square glass standoff: a 50 × 50 mm stainless steel block with a clamp plate and rubber inserts that grip the glass. It suits modern projects with square posts and flat details.
MOD 2921 is listed on page 25 of the UNIKIM 2024 catalogue. It belongs to our range of glass standoffs for frameless glass railings and balustrades.
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 2921 (catalogue p. 25) |
| Type | Square glass standoff, single |

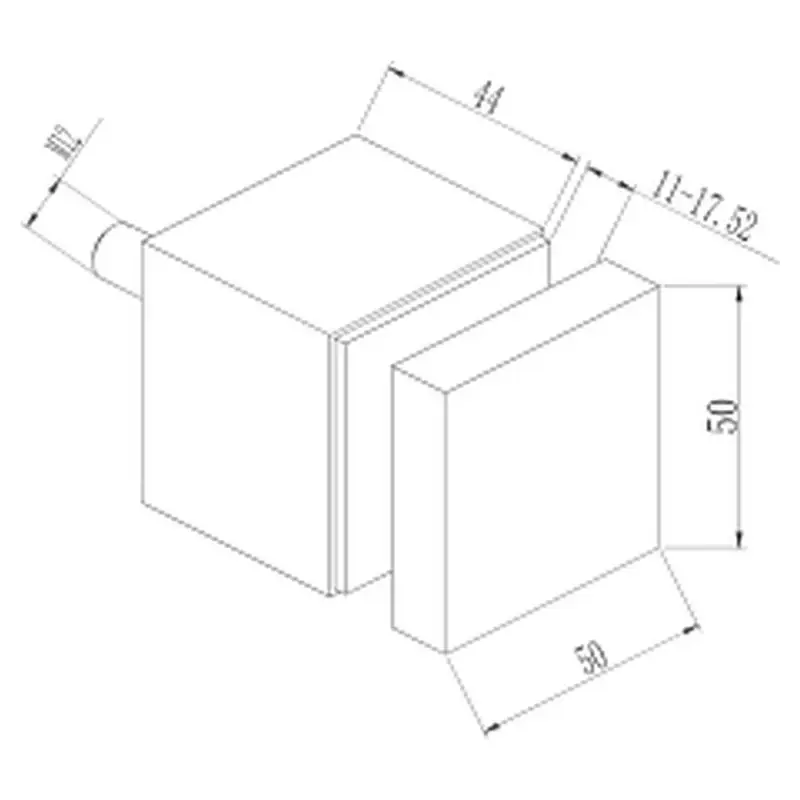

| Size | 50 × 50 mm |
| Glass thickness | 8–17.52 mm (tempered or laminated) |
| Fixing | Threaded bolt into the wall, slab or post |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Size | Glass (mm) |
|---|---|---|
| A2.2921.00.S | 50 × 50 mm | 8–17.52 |
For AISI 316 replace A2 with A4.
Applications
Modern balustrades with square posts, glass fixed to the face of a slab, stairs and canopies with a square design.
Installation notes
- Drill the glass with the hole size shown in the catalogue for this model, and always use tempered or laminated safety glass.
- Fix the standoff with an anchor that suits the base: chemical anchor in concrete, through-bolt in steel, or the matching screw in timber.
- Keep the rubber or PVC washers between the glass and the metal; steel must never touch the glass directly.
- The number of standoffs per panel and the edge distances depend on the glass size and the load – ask an engineer for public or commercial projects.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Standoffs, spigots, clamps and handrail parts can be shipped together, with OEM packing on request. Browse all glass standoffs.
Related products
- Square Glass Standoff, Double (MOD 2922)
- Stainless Steel Standoff Ø50 × 30 mm (MOD 2330)
- Adjustable Glass Railing Standoff (MOD 2920)
- Heavy Duty Glass Standoff Ø70 × 30 mm (MOD 2530)
FAQ
What is a glass standoff?
A round or square stainless steel fitting that bolts through the glass and holds it a set distance from the wall, slab or post.
Which glass thickness does MOD 2921 fit?
8–17.52 mm (tempered or laminated).
Is MOD 2921 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Can I order samples or OEM packing?
Yes – contact us with the model, size and quantity.
Need a price? Request a quotation with the model number, size, quantity and finish.
