Cap Rail Corner 90° – overview
The Cap Rail Corner 90° (MOD 0302) is a one-piece corner of the UNIKIM U cap rail, so the top rail can turn round a corner without mitre cutting on site.
MOD 0302 is listed on page 12 of the UNIKIM 2024 catalogue in the same two sizes as the U Cap Rail (MOD 0301).
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications

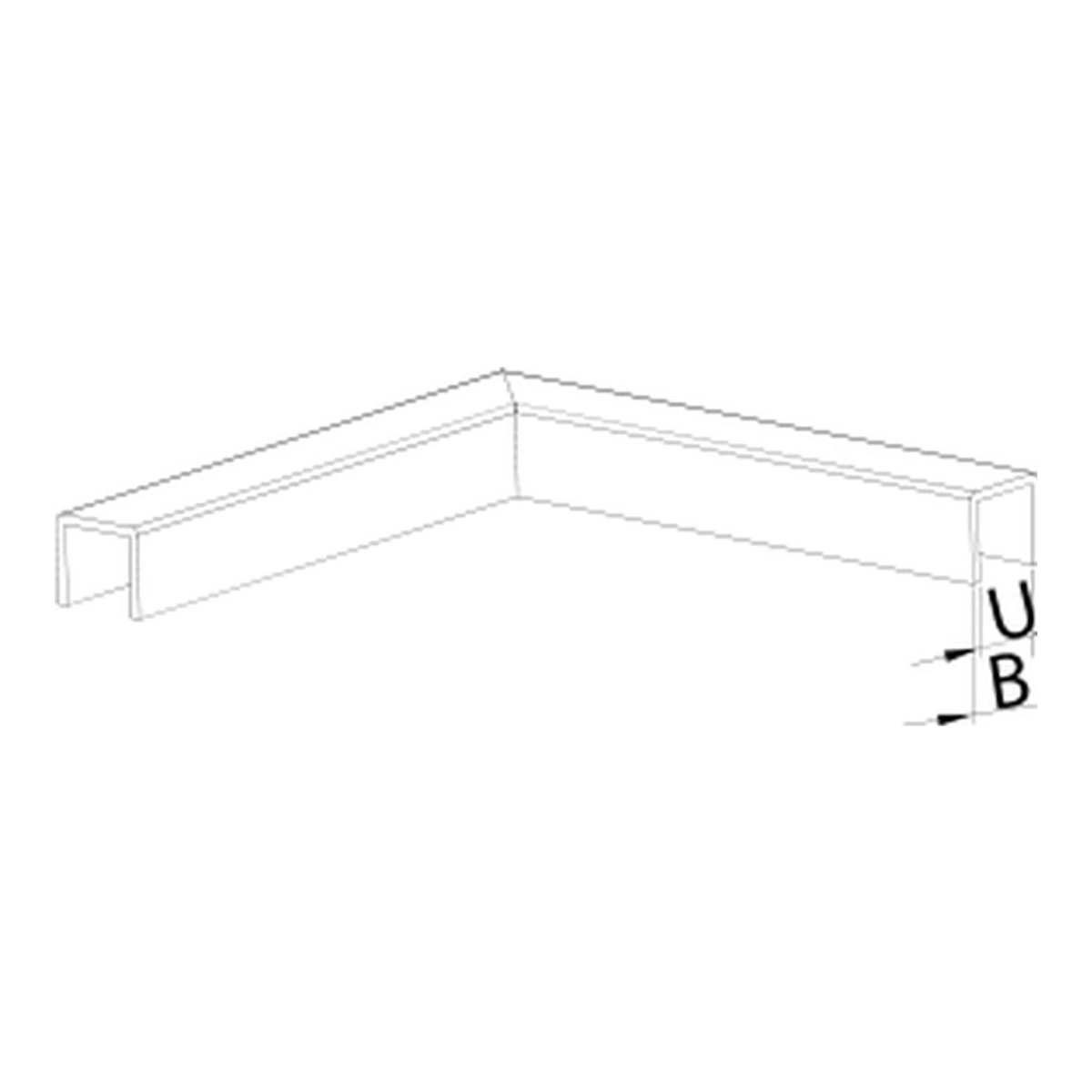

| Model | MOD 0302 (catalogue p. 12) |
| A2.0302.30.S | U 24, B 30, H 27 mm – glass 8–21.52 mm |
| A2.0302.40.S | U 34, B 40, H 37 mm – glass 8–31.52 mm |
| Angle | 90° |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Applications
Corners of frameless glass balustrades, balconies and pool fences with a U cap rail.
Installation notes
- Fit the corner first, then butt the straight cap rails against it.
- Use the same rubber strip as the straight cap rail.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- U Cap Rail (MOD 0301)
- Black U Cap Rail (MOD 0301)
- Round Slot Tube Handrail (MOD 0300)
- Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860)
FAQ
What is a cap rail corner?
A one-piece 90° corner for the U cap rail, so no mitre has to be cut on site.
Which sizes are available?
30 × 27 mm and 40 × 37 mm, matching the cap rail MOD 0301.
Which glass thickness fits?
8–21.52 mm (30 × 27) or 8–31.52 mm (40 × 37).
Is a black corner available?
Yes, on request in matte black to match the black cap rail.
Need a price? Request a quotation with the model number, size, quantity and finish.
