Indoor Square Glass Clamp 45×45 mm for 6–10.76 mm Glass

Indoor Square Glass Clamp 45×45 mm – overview

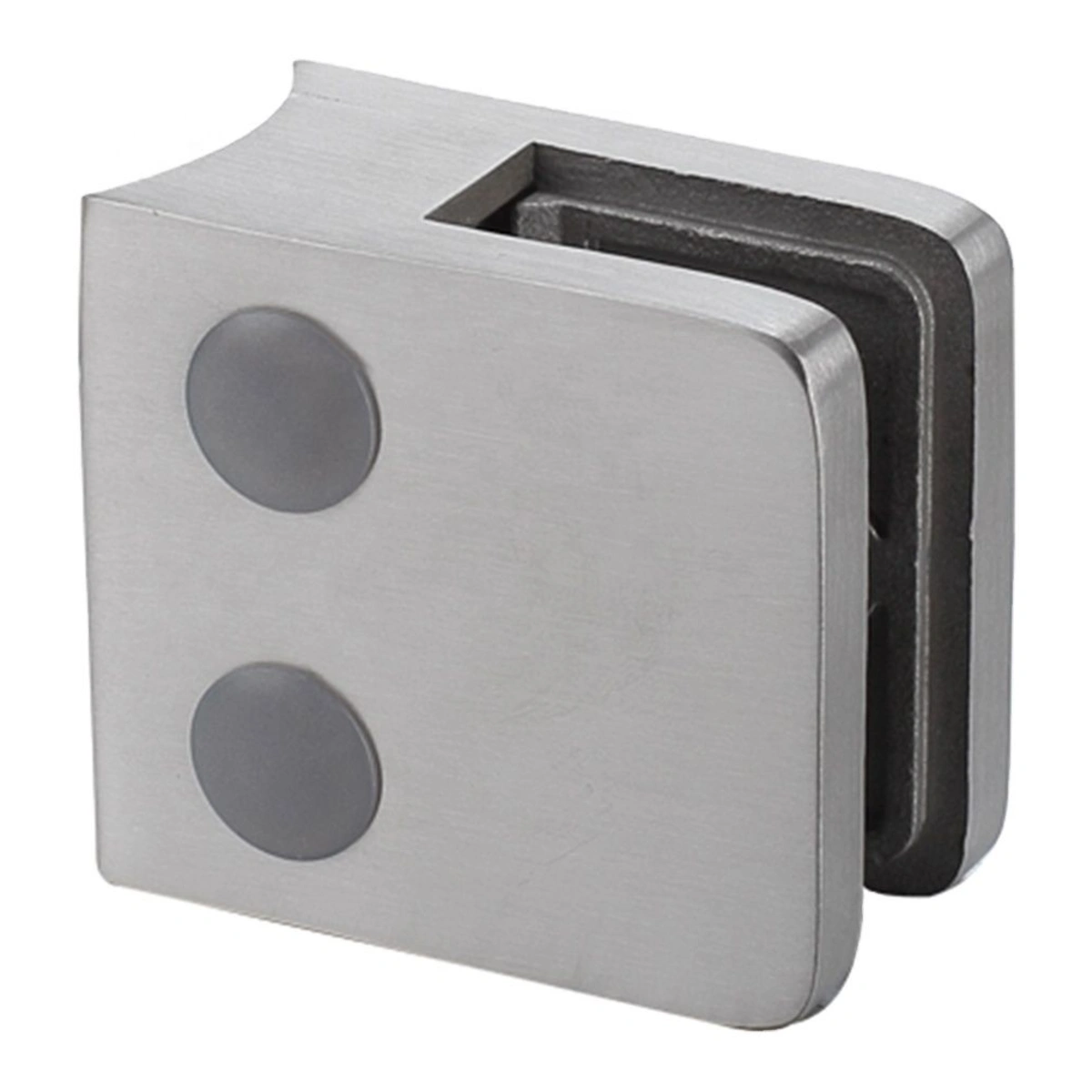

The Indoor Square Glass Clamp 45×45 mm (MOD 2020) is a compact indoor square glass clamp for balustrade panels on stairs, landings and mezzanines. It fixes the glass to a post, a wall or a handrail tube without drilling the glass.

MOD 2020 appears in the glass-thickness table on page 39 of the UNIKIM 2024 catalogue, next to the 45×45 mm MOD 2025 and MOD 2021. The difference: the MOD 2020 rubber insert has no hole for a security pin, so it is meant for indoor projects. For outdoor railings choose a clamp listed with a security pin, such as the Square Glass Clamp 55×55 mm.

UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.

Specifications

Applications

Indoor glass balustrades on stairs, landings, galleries and mezzanines; glass infill between stainless steel posts in homes, offices, hotels and shops.

Installation notes

• Glass panel height in the catalogue test set-up: 800–1,000 mm; minimum panel width 500 mm.
• Gap from handrail to top of glass, and from floor to bottom of glass: 10–50 mm (up to 120 mm with edge protection).
• Fit the clamps 100–150 mm from the top and bottom edges of the panel.
• Use the rubber insert that matches your exact glass thickness – see glass clamp rubber inserts.

MOD 2020, 2025 or 2021?

All three are 45×45 mm square clamps for 6–10.76 mm glass. Choose MOD 2020 for a plain indoor clamp without pin hole, the Square Glass Clamp 45×45 mm (MOD 2025) for the version with pin hole, or the Square Glass Clamp 45×45 mm with Baffle Plate (MOD 2021) when you want the baffle-plate insert.

Why order from UNIKIM

We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.

Related products

• Square Glass Clamp 45×45 mm
• Square Glass Clamp 45×45 mm with Baffle Plate
• Square Glass Clamp 55×55 mm
• Glass Clamp Rubber Inserts

FAQ

Which glass thickness does MOD 2020 fit?

Single glass 6, 8 and 10 mm and laminated glass 6.76, 8.76 and 10.76 mm, each with its matching rubber insert.

Can I use MOD 2020 outdoors?

It is meant for indoor use because its insert has no security-pin hole. For outdoor railings choose a clamp listed with a security pin, for example MOD 2022 (55×55 mm).

What is the difference between MOD 2020 and MOD 2025?

Both are 45×45 mm square clamps for the same glass. MOD 2020 has a rubber insert without hole; MOD 2025 has an insert with hole.

Is AISI 316 available?

Yes. Order AISI 316 (A4) for humid, pool and coastal areas, and AISI 304 (A2) for dry indoor areas.
