Square Railing End Post 40 × 40 mm with 2 Clamp Holes – overview

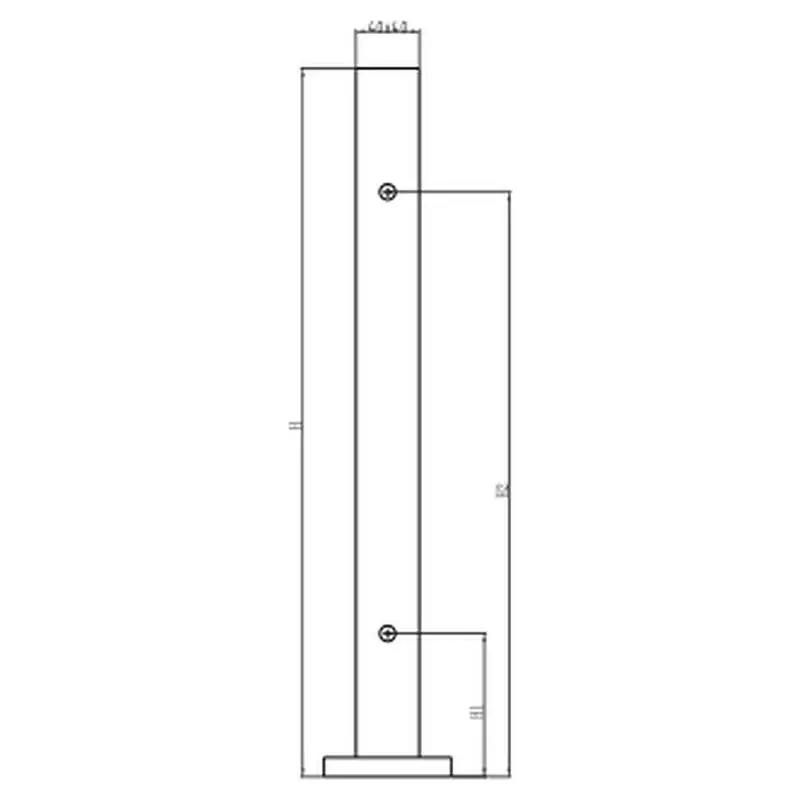

The Square Railing End Post 40 × 40 mm with 2 Clamp Holes (MOD 9060) is a square 40 × 40 mm stainless steel end post with a welded base plate and two holes on one side for glass clamps. It closes a run of glass with a crisp square profile.
MOD 9060 is listed on page 31 of the UNIKIM 2024 catalogue as part of our stainless steel railing posts. UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 9060 (catalogue p. 31) |
| Type | Square railing post – end post |
| Tube | 40 × 40 mm square tube (2.0 mm wall standard) |
| Holes | 2 holes on one side, for glass clamps |
| Base | Welded base plate for surface fixing |
| Height | Made to order; common library heights include 823 and 976 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Tube |
|---|---|
| A2.9060.40.S | 40 × 40 mm |
For AISI 316 replace A2 with A4. Tell us the finished height when you order; posts are cut and drilled to suit the glass and the floor build-up.
Applications
The first and last post of square-style glass balustrades on balconies, stairs and landings.
Installation notes
- Fix the base plate with anchors that suit the floor: chemical anchors in concrete, through-bolts in steel, or structural screws into solid timber.
- Hide the anchors with a matching base cover from our bases and covers range.
- Fit glass clamps with a flat back that matches the post, and order the rubber inserts for your exact glass thickness.
- Check the guard height for your project: IBC Section 1015 requires at least 42 inches (1,067 mm) for required guards in most buildings; homes under the IRC use 36 inches.
Why order from UNIKIM
We have over 20 years of manufacturing experience and supply posts, clamps, handrails and fittings as one matched system to distributors, contractors and fabricators worldwide. Mixed orders can ship together, with OEM packing on request.
Related products
- Square Railing Post 40 × 40, No Holes (MOD 9050)
- Square 180° Middle Post (MOD 9070)
- Square 90° Corner Post (MOD 9080)
- Round 180° Middle Post (MOD 9020)
FAQ
What tube sizes are available for MOD 9060?
40 × 40 mm square tube, with a 2.0 mm wall as standard.
How tall is the post?
Posts are made to the height you need. Send the finished guard height and the floor build-up with your order.
What are the holes for?
They are for glass clamps: 2 holes on one side. Use clamps with a flat back for this post.
Is MOD 9060 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Need a price? Request a quotation with the model number, tube size, height, quantity and finish.
