Square Stainless Steel Railing Post 40 × 40 mm, without Holes – overview

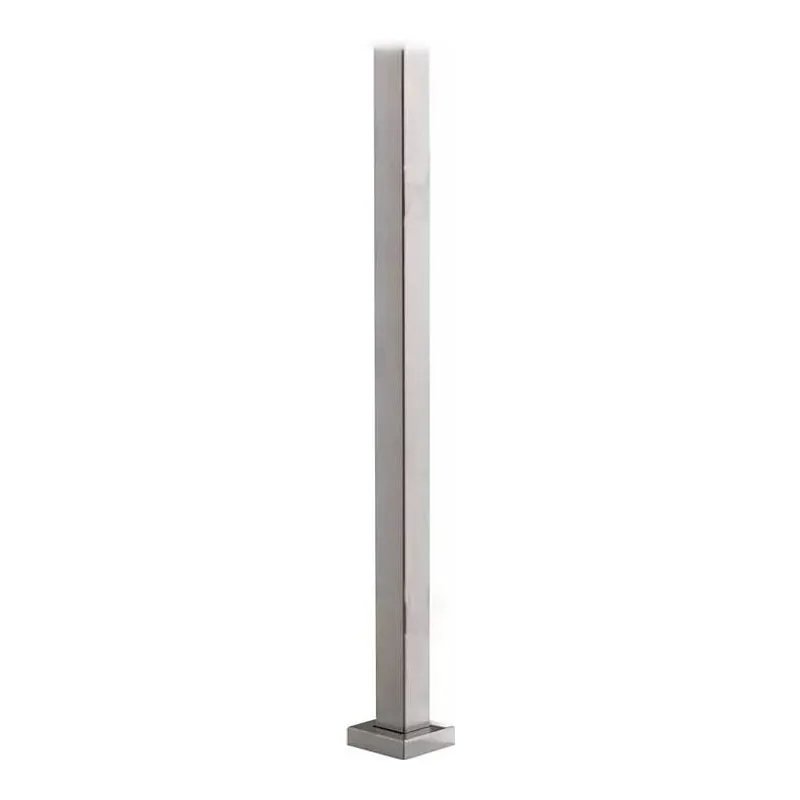

The Square Stainless Steel Railing Post 40 × 40 mm, without Holes (MOD 9050) is a square 40 × 40 mm stainless steel railing post with a welded base plate and no drilled holes. It suits modern square designs, and you choose where the fittings go.
MOD 9050 is listed on page 31 of the UNIKIM 2024 catalogue as part of our stainless steel railing posts. UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 9050 (catalogue p. 31) |
| Type | Square railing post – without drilled holes |

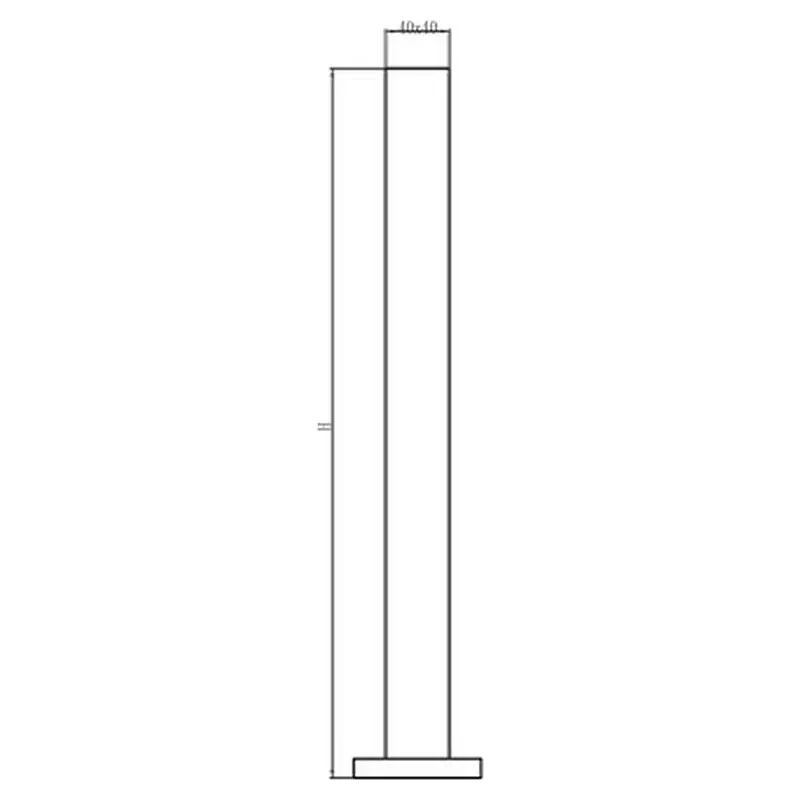

| Tube | 40 × 40 mm square tube (2.0 mm wall standard) |
| Holes | None – drill on site for the fittings you choose |
| Base | Welded base plate for surface fixing |
| Height | Made to order; common library heights include 823 and 976 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Tube |
|---|---|
| A2.9050.40.S | 40 × 40 mm |
For AISI 316 replace A2 with A4. Tell us the finished height when you order; posts are cut and drilled to suit the glass and the floor build-up.
Applications
Modern balconies, stairs and decks with square handrails, and custom railings with mixed infill.
Installation notes
- Fix the base plate with anchors that suit the floor: chemical anchors in concrete, through-bolts in steel, or structural screws into solid timber.
- Hide the anchors with a matching base cover from our bases and covers range.
- Mark and drill the fitting holes on site, then deburr them before fitting clamps or brackets.
- Check the guard height for your project: IBC Section 1015 requires at least 42 inches (1,067 mm) for required guards in most buildings; homes under the IRC use 36 inches.
Why order from UNIKIM
We have over 20 years of manufacturing experience and supply posts, clamps, handrails and fittings as one matched system to distributors, contractors and fabricators worldwide. Mixed orders can ship together, with OEM packing on request.
Related products
- Square End Post (MOD 9060)
- Square 180° Middle Post (MOD 9070)
- Square 90° Corner Post (MOD 9080)
- Round 180° Middle Post (MOD 9020)
FAQ
What tube sizes are available for MOD 9050?
40 × 40 mm square tube, with a 2.0 mm wall as standard.
How tall is the post?
Posts are made to the height you need. Send the finished guard height and the floor build-up with your order.
Can I drill the post on site?
Yes – the post has no holes, so you can fix clamps, brackets or other fittings where the design needs them.
Is MOD 9050 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Need a price? Request a quotation with the model number, tube size, height, quantity and finish.
