Stainless Steel Glass Spigot for Pool Fencing – overview

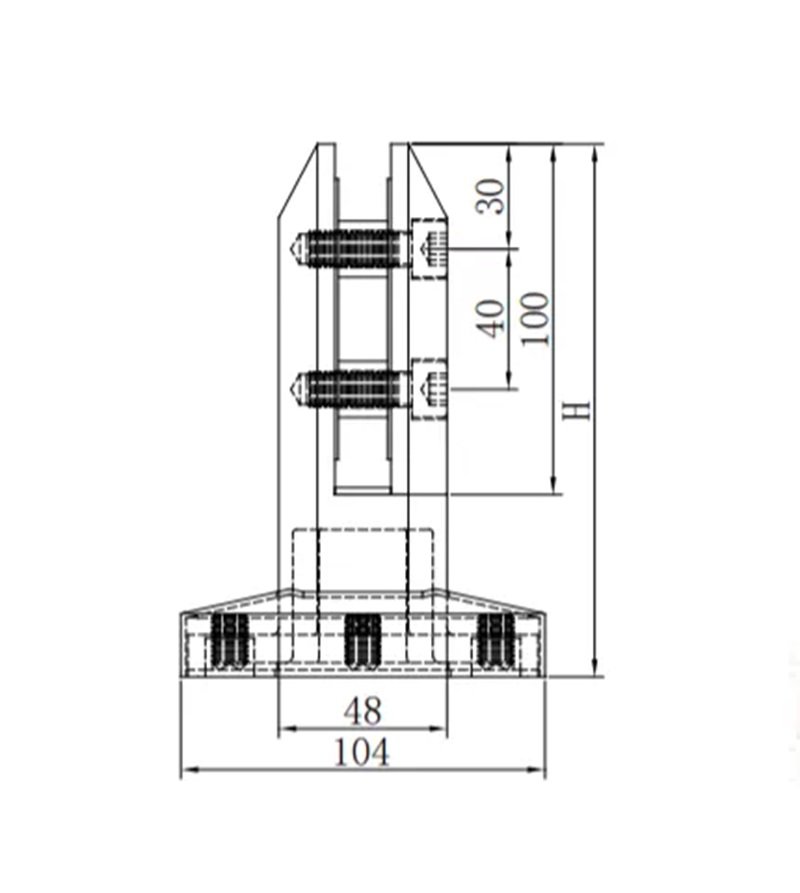

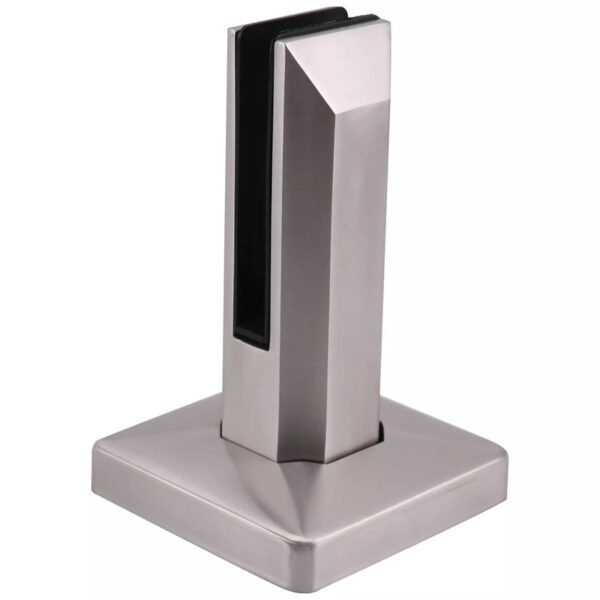

The Stainless Steel Glass Spigot for Pool Fencing (MOD 6101) is the square UNIKIM spigot with a two-bolt clamp. The catalogue drawing shows the bolts at 30 mm and 40 mm in the 100 mm clamp, on a 48 mm post and 104 × 104 mm base.
MOD 6101 is listed on page 20 of the UNIKIM 2024 catalogue. The single-clamp version is the Square Glass Spigot (MOD 6100) (MOD 6100).
Every UNIKIM glass spigot is made in AISI 316 stainless steel (Art. No. prefix A4), the grade for swimming pools, terraces and coastal sites.
Specifications
| Model | MOD 6101 (catalogue p. 20) |
| Shape | Square post 48 mm on 104 × 104 mm base plate |
| Height H | 150, 160 or 180 mm |
| Clamp | 100 mm high, two bolts at 30 / 40 mm (drawing) |
| Material | AISI 316 stainless steel (A4) – suitable for pools and coastal sites |
| Finish | Brushed (satin) |
Versions and article numbers
| Art. No. (AISI 316) | Height H |
|---|---|
| A4.6101.01.S | 150 mm |
| A4.6101.02.S | 160 mm |
| A4.6101.03.S | 180 mm |
Applications

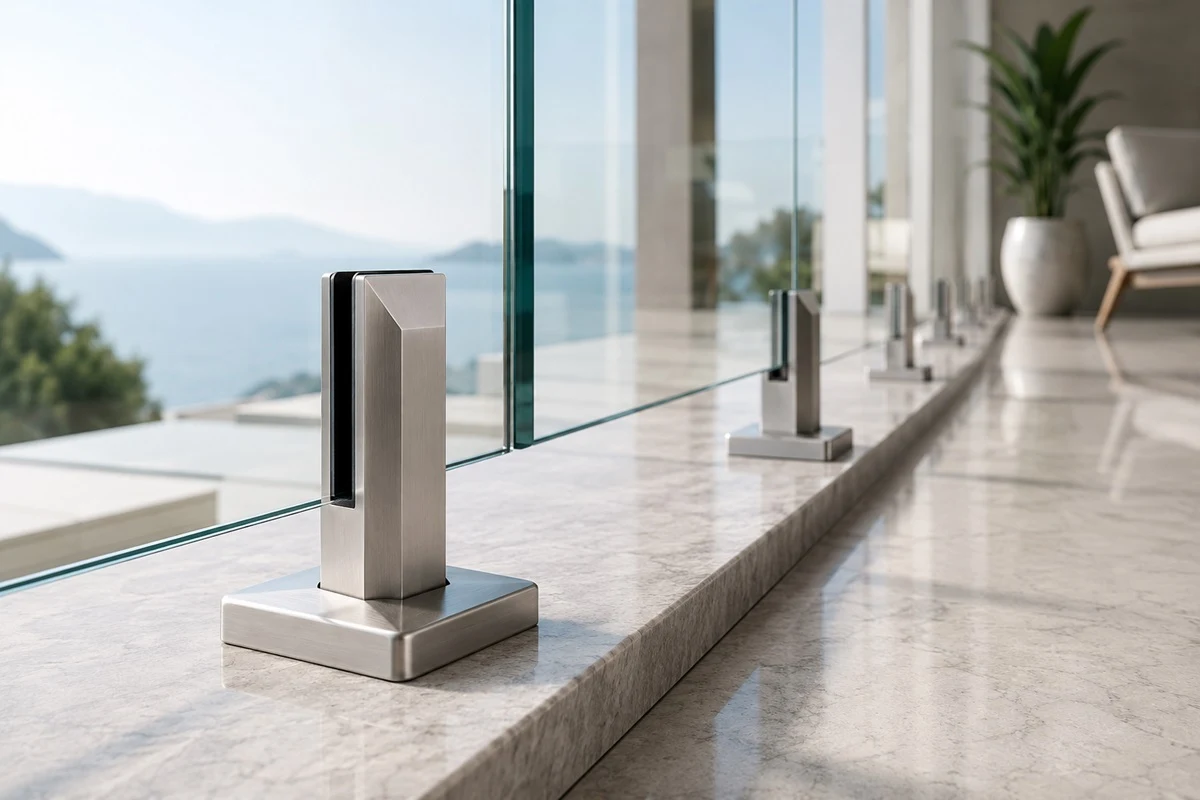

Frameless glass pool fences at homes, hotels and public pools; terraces and roof decks; balcony balustrades with square spigots.
Installation notes
- Fix the base to a concrete slab or a structural sub-floor with anchors chosen by your engineer.
- Use rubber inserts sized to your glass, set the panel height and tighten the clamping screws evenly.
- Check spigot spacing, glass type and loads against your local pool-fence or balustrade rules.
MOD 6101 or MOD 6100?
Both are square with the same base. MOD 6101 closes the clamp with two bolts; the Square Glass Spigot (MOD 6100) (MOD 6100) uses one clamping zone and is also available in black.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all glass spigots.
Related products
- Square Glass Spigot (MOD 6100)
- Black Glass Spigot (MOD 6100)
- Round Pool Fence Spigot (MOD 6001)
- Side Mount Fence Spigot 143 mm (MOD 6510)
FAQ
What is a stainless steel glass spigot?
A stainless steel post on a base plate that clamps a frameless glass panel from below – the standard fixing for glass pool fences.
Which heights are available?
150 mm (A4.6101.01.S), 160 mm (A4.6101.02.S) and 180 mm (A4.6101.03.S).
Why AISI 316?
It resists chlorine, salt water and coastal air far better than AISI 304, so it is the right grade around pools.
How many spigots per panel?
Usually two per glass panel; the exact spacing depends on panel width, glass and local rules.
Need a price? Request a quotation with the model number, size, quantity and finish.
