Round 135° Railing Post with 4 Clamp Holes – Ø33.7 to 50.8 mm – overview

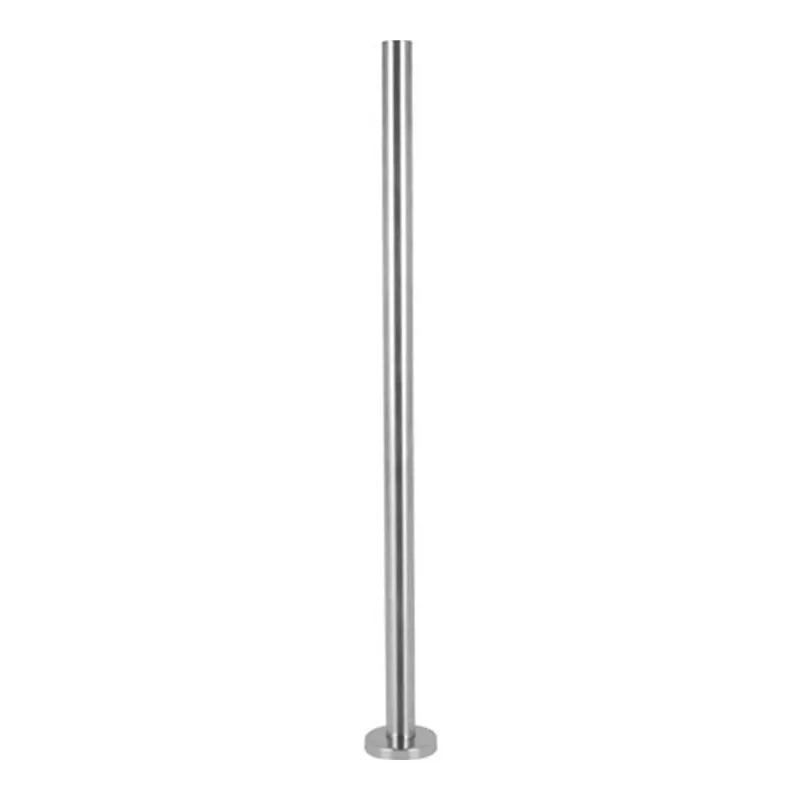

The Round 135° Railing Post with 4 Clamp Holes – Ø33.7 to 50.8 mm (MOD 9031) is a round stainless steel post with a welded base plate and four holes on two sides at 135°. It follows angled corners, such as bay balconies and chamfered landings, without a custom bend.
MOD 9031 is listed on page 30 of the UNIKIM 2024 catalogue as part of our stainless steel railing posts. UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 9031 (catalogue p. 30) |
| Type | Round railing post – 135° angle post |
| Tube | Ø33.7 × 2.0, Ø38.1 × 1.5, Ø42.4 × 2.0, Ø48.3 × 2.0 or Ø50.8 × 1.5 mm |
| Holes | 4 holes, two on each of two sides at 135°, for glass clamps |
| Base | Welded base plate for surface fixing |
| Height | Made to order; common library heights include 823 and 976 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Tube Ø × wall |
|---|---|
| A2.9031.33.S | Ø33.7 × 2.0 mm |
| A2.9031.38.S | Ø38.1 × 1.5 mm |
| A2.9031.42.S | Ø42.4 × 2.0 mm |
| A2.9031.48.S | Ø48.3 × 2.0 mm |
| A2.9031.50.S | Ø50.8 × 1.5 mm |
For AISI 316 replace A2 with A4. Tell us the finished height when you order; posts are cut and drilled to suit the glass and the floor build-up.
Applications
Bay balconies, chamfered corners, angled landings and terraces with 135° turns.
Installation notes
- Fix the base plate with anchors that suit the floor: chemical anchors in concrete, through-bolts in steel, or structural screws into solid timber.
- Hide the anchors with a matching base cover from our bases and covers range.
- Fit glass clamps with a tube back that matches the post, and order the rubber inserts for your exact glass thickness.
- Check the guard height for your project: IBC Section 1015 requires at least 42 inches (1,067 mm) for required guards in most buildings; homes under the IRC use 36 inches.
Why order from UNIKIM
We have over 20 years of manufacturing experience and supply posts, clamps, handrails and fittings as one matched system to distributors, contractors and fabricators worldwide. Mixed orders can ship together, with OEM packing on request.
Related products
- Round Railing Post, No Holes (MOD 9000)
- Round Railing End Post (MOD 9010)
- Round 180° Middle Post (MOD 9020)
- Round 90° Corner Post (MOD 9030)
- Square 180° Middle Post (MOD 9070)
FAQ
What tube sizes are available for MOD 9031?
Ø33.7 × 2.0, Ø38.1 × 1.5, Ø42.4 × 2.0, Ø48.3 × 2.0 and Ø50.8 × 1.5 mm.
How tall is the post?
Posts are made to the height you need. Send the finished guard height and the floor build-up with your order.
What are the holes for?
They are for glass clamps: 4 holes, two on each of two sides at 135°. Use clamps with a tube back for this post.
Is MOD 9031 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Need a price? Request a quotation with the model number, tube size, height, quantity and finish.
