Slot Tube End Cap – overview
The Slot Tube End Cap (MOD 1100) is pushed into the end of the round slot tube handrail. Its flat, rounded cap closes the tube and keeps the glass slot visible underneath, so the handrail end is smooth to the touch.
MOD 1100 is listed on page 14 of the UNIKIM 2024 catalogue in three sizes for slot tube Ø42.4, Ø48.3 and Ø60.3 mm (1.5 mm wall). It belongs to the Slot Tube Handrail System – all parts together with the Round Slot Tube Handrail (MOD 0300).
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 1100 (catalogue p. 14) |
| Type | End cap |
| Tube sizes | Ø42.4 × 1.5, Ø48.3 × 1.5 and Ø60.3 × 1.5 mm |

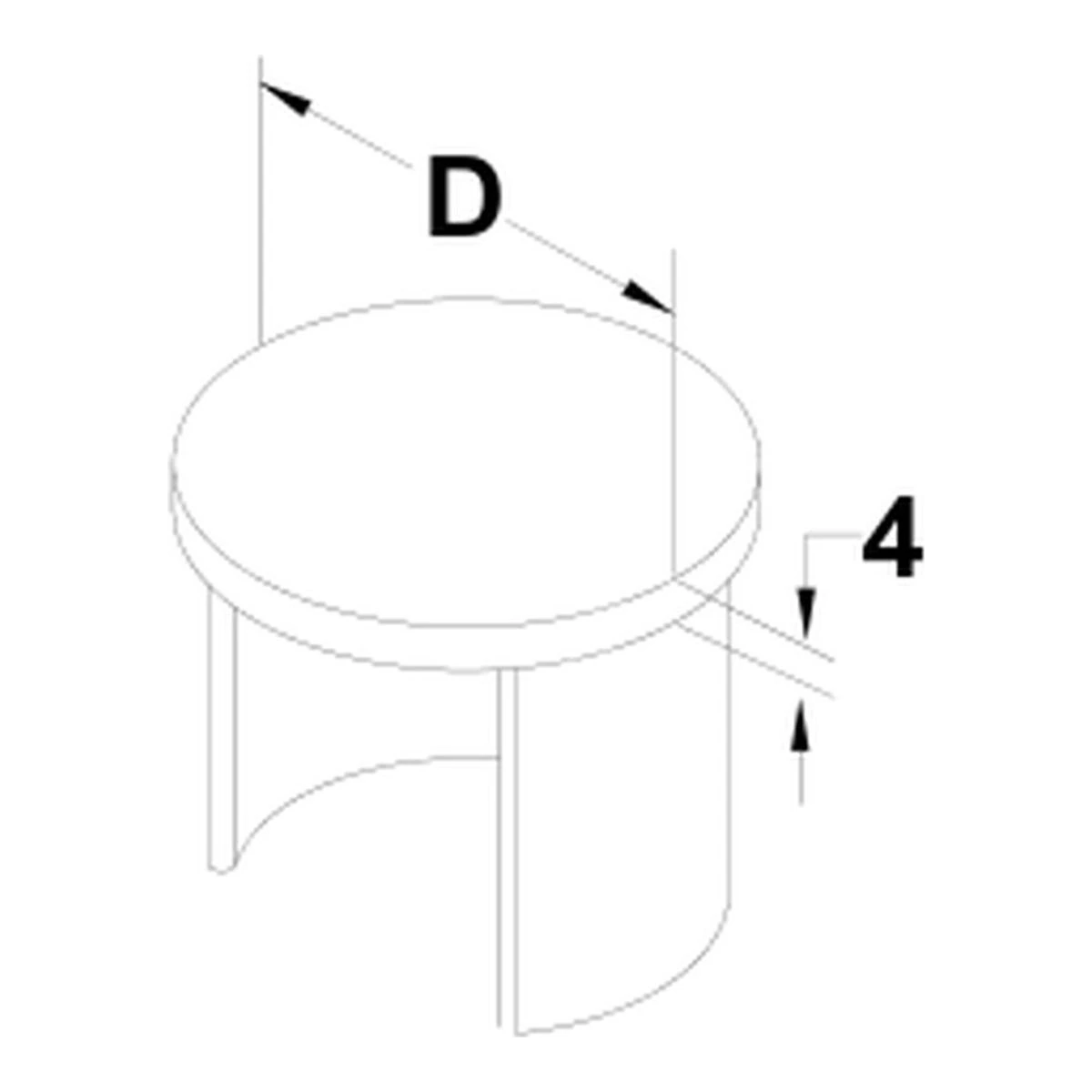

| Cap | 4 mm thick top plate (drawing) |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Fits |
|---|---|
| A2.1100.42.S | Slot tube Ø42.4 × 1.5 mm |
| A2.1100.48.S | Slot tube Ø48.3 × 1.5 mm |
| A2.1100.60.S | Slot tube Ø60.3 × 1.5 mm |
For AISI 316 replace A2 with A4.
Applications
Ends of glass balustrade handrails at walls, openings and stair ends; pool fence handrails; any slot tube run that does not end at a wall flange.
Installation notes
- Cut the slot tube square and deburr it; push the fitting in and fix it as shown in the installation guide (glue or screws).
- Order the fitting for the same tube size as your slot tube: Ø42.4, Ø48.3 or Ø60.3 mm.
- Fit the Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860) for your glass before placing the tube on the glass.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Slot Tube Wall Flange (MOD 1140)
- Slot Tube Vertical Elbow 90° (MOD 1120)
- Round Slot Tube Handrail (MOD 0300)
- Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860)
FAQ
What is a slot tube end cap?
A cap that closes the open end of a round slot tube handrail.
Which sizes are available?
For Ø42.4, Ø48.3 and Ø60.3 mm slot tube (1.5 mm wall).
How is it fixed?
It is pushed into the tube and fixed with glue, as shown in the installation guide.
Can I use it at a wall?
At a wall use the wall flange MOD 1140 or the wall end fitting MOD 1171 / 1172 instead.
