Slot Tube Vertical Elbow 90° – overview

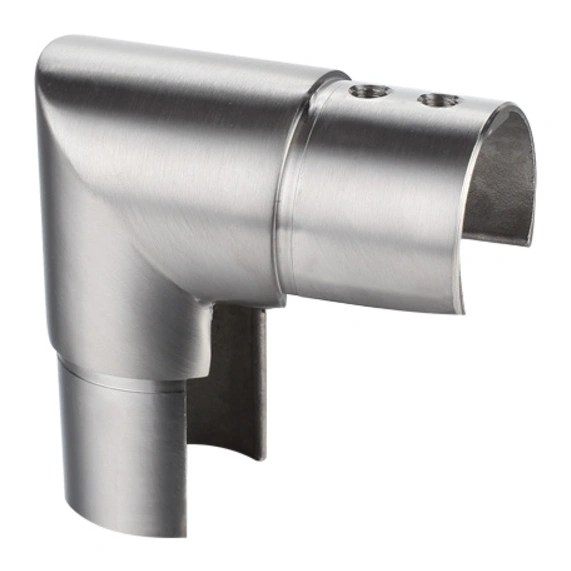

The Slot Tube Vertical Elbow 90° (MOD 1120) turns the slot tube handrail downwards in the vertical plane – the slot stays on the glass side, so the elbow can end the handrail at a post or carry it down beside the glass.
MOD 1120 is listed on page 14 of the UNIKIM 2024 catalogue in three sizes for slot tube Ø42.4, Ø48.3 and Ø60.3 mm (1.5 mm wall). It belongs to the Slot Tube Handrail System – all parts together with the Round Slot Tube Handrail (MOD 0300).
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications

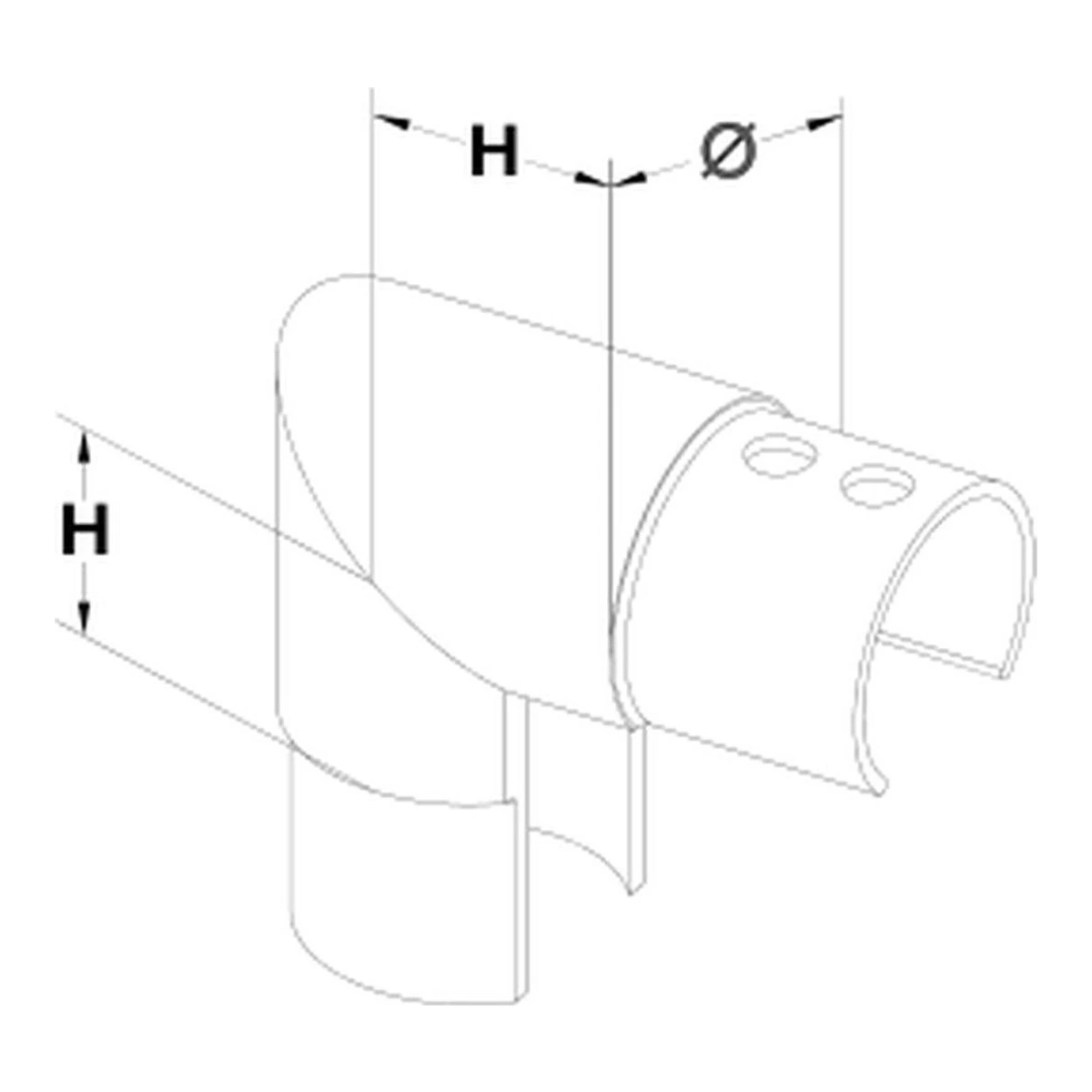

| Model | MOD 1120 (catalogue p. 14) |
| Type | Elbow 90°, vertical |
| Tube sizes | Ø42.4 × 1.5, Ø48.3 × 1.5 and Ø60.3 × 1.5 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Fits |
|---|---|
| A2.1120.42.S | Slot tube Ø42.4 × 1.5 mm |
| A2.1120.48.S | Slot tube Ø48.3 × 1.5 mm |
| A2.1120.60.S | Slot tube Ø60.3 × 1.5 mm |
For AISI 316 replace A2 with A4.
Applications
Ends of glass balustrade handrails turning down to a post or newel; stair balustrades; landings where the handrail drops at the end of the glass.
Installation notes
- Cut the slot tube square and deburr it; push the fitting in and fix it as shown in the installation guide (glue or screws).
- Order the fitting for the same tube size as your slot tube: Ø42.4, Ø48.3 or Ø60.3 mm.
- Fit the Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860) for your glass before placing the tube on the glass.
Vertical or horizontal?
Use the vertical elbow MOD 1120 when the handrail turns down; use the Slot Tube Horizontal Corner 90° (MOD 1130) (MOD 1130) when the balustrade turns a corner in plan.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Slot Tube Horizontal Corner 90° (MOD 1130)
- Slot Tube Straight Connector (MOD 1150)
- Slot Tube End Cap (MOD 1100)
- Round Slot Tube Handrail (MOD 0300)
FAQ
What is a slot tube elbow?
A 90° bend for the round slot tube handrail. MOD 1120 turns the handrail down in the vertical plane.
Which sizes are available?
Ø42.4, Ø48.3 and Ø60.3 mm.
What about horizontal corners?
Use the horizontal 90° corner MOD 1130.
How is it fixed?
Pushed into the tube and fixed with glue or screws, as shown in the installation guide.
Need a price? Request a quotation with the model number, size, quantity and finish.
