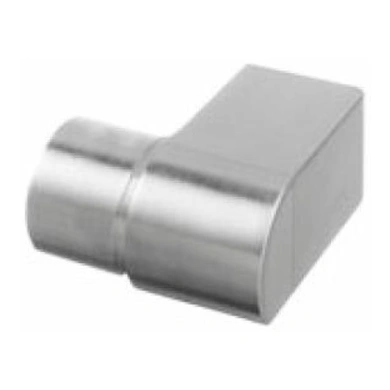

Slot Tube Wall End Fitting (MOD 1171)

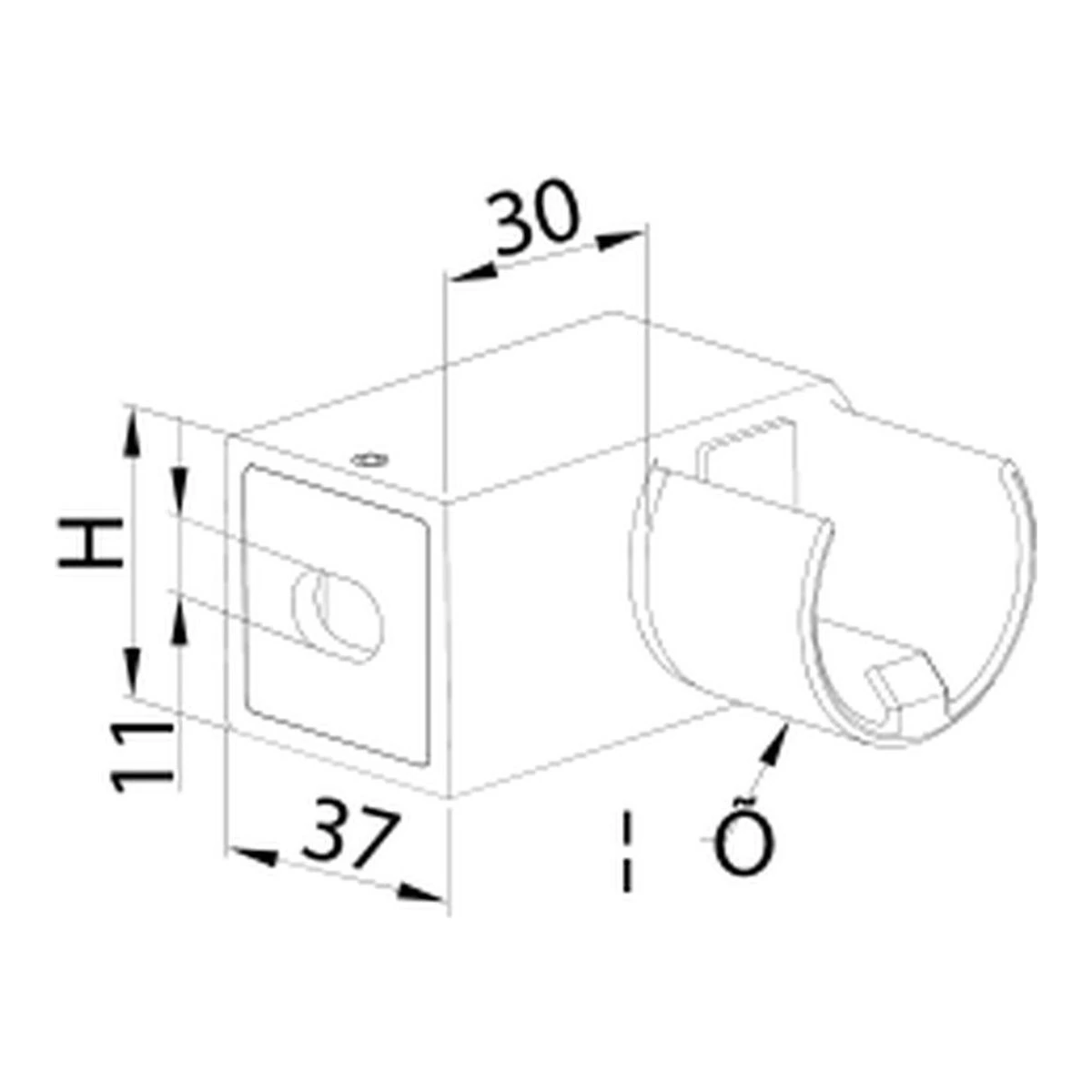

The Slot Tube Wall End Fitting (MOD 1171) joins the end of the slot tube to a square block that is screwed to the wall. The drawing shows a 37 × 30 mm block with an 11 mm offset – a modern, square alternative to the round wall flange.
MOD 1171 is listed on page 16 of the UNIKIM 2024 catalogue in three sizes for slot tube Ø42.4, Ø48.3 and Ø60.3 mm. It is part of the Slot Tube Handrail System – all parts.
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 1171 (catalogue p. 16) |
| Type | Wall end fitting (square block) |
| Tube sizes | Ø42.4 × 1.5, Ø48.3 × 1.5 and Ø60.3 × 1.5 mm |
| Block | 37 × 30 mm, 11 mm offset (drawing) |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Fits |
|---|---|
| A2.1171.42.S | Slot tube Ø42.4 × 1.5 mm |
| A2.1171.48.S | Slot tube Ø48.3 × 1.5 mm |
| A2.1171.60.S | Slot tube Ø60.3 × 1.5 mm |
For AISI 316 replace A2 with A4.
Applications
Ends of glass balustrade handrails at walls on stairs and balconies, where a square, modern wall detail is wanted.
Installation notes
- Cut the slot tube square and deburr it; push the fitting in and fix it as shown in the installation guide (glue or screws).
- Order the fitting for the same tube size as your slot tube: Ø42.4, Ø48.3 or Ø60.3 mm.
- Fit the Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860) for your glass before placing the tube on the glass.
MOD 1171 or MOD 1172?
MOD 1171 and the Slot Tube Wall End Fitting (MOD 1172) are mirror versions for the two sides of a run. For a round flange use the Slot Tube Wall Flange (MOD 1140).
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Slot Tube Wall End Fitting (MOD 1172)
- Slot Tube Wall Flange (MOD 1140)
- Slot Tube End Cap (MOD 1100)
- Slot Tube Handrail System – all parts
FAQ
What is a slot tube wall end fitting?
A fitting that connects the end of a round slot tube handrail to a wall with a square block.
How big is the block?
37 × 30 mm with an 11 mm offset, according to the drawing.
Which sizes are available?
For Ø42.4, Ø48.3 and Ø60.3 mm tube.
What is the difference to MOD 1172?
They are mirror versions for left and right ends.
Need a price? Request a quotation with the model number, size, quantity and finish.
