Slot Tube Horizontal Corner 90° – overview

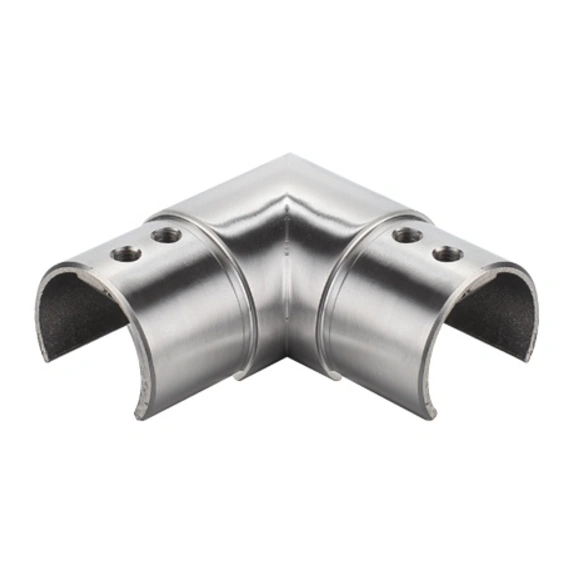

The Slot Tube Horizontal Corner 90° (MOD 1130) joins two lengths of slot tube at a right angle in plan. The slot runs round the corner, so both glass panels stay held by the rubber strip.
MOD 1130 is listed on page 14 of the UNIKIM 2024 catalogue in three sizes for slot tube Ø42.4, Ø48.3 and Ø60.3 mm (1.5 mm wall). It belongs to the Slot Tube Handrail System – all parts together with the Round Slot Tube Handrail (MOD 0300).
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications

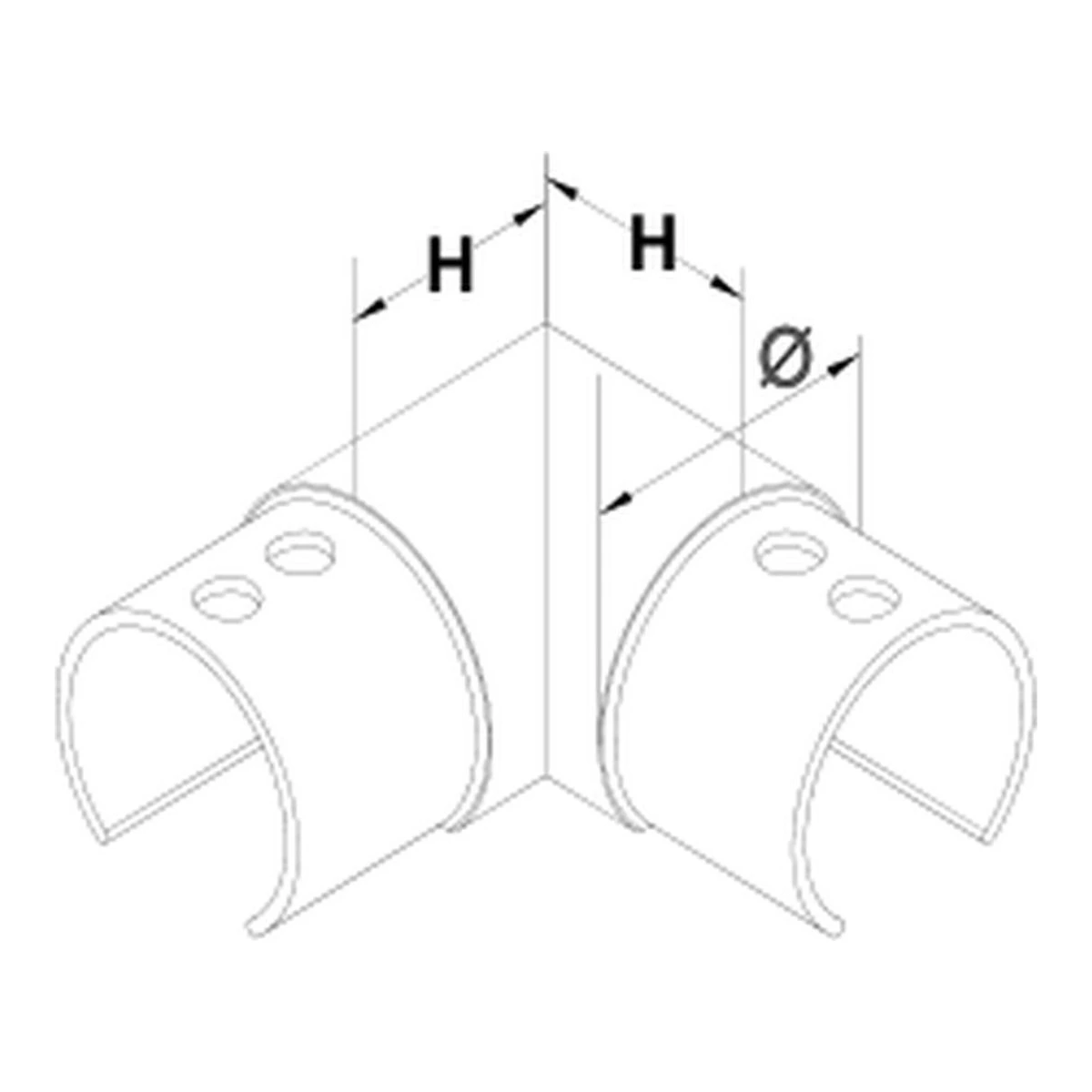

| Model | MOD 1130 (catalogue p. 14) |
| Type | Corner 90°, horizontal |
| Tube sizes | Ø42.4 × 1.5, Ø48.3 × 1.5 and Ø60.3 × 1.5 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Fits |
|---|---|
| A2.1130.42.S | Slot tube Ø42.4 × 1.5 mm |
| A2.1130.48.S | Slot tube Ø48.3 × 1.5 mm |
| A2.1130.60.S | Slot tube Ø60.3 × 1.5 mm |
For AISI 316 replace A2 with A4.
Applications
Corners of glass balconies, terraces, mezzanines and pool fences with a round slot tube handrail.
Installation notes
- Cut the slot tube square and deburr it; push the fitting in and fix it as shown in the installation guide (glue or screws).
- Order the fitting for the same tube size as your slot tube: Ø42.4, Ø48.3 or Ø60.3 mm.
- Fit the Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860) for your glass before placing the tube on the glass.
Horizontal or vertical?
Use MOD 1130 for corners in plan; use the Slot Tube Vertical Elbow 90° (MOD 1120) (MOD 1120) when the handrail turns down.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Slot Tube Vertical Elbow 90° (MOD 1120)
- Slot Tube Straight Connector (MOD 1150)
- Slot Tube End Cap (MOD 1100)
- Round Slot Tube Handrail (MOD 0300)
FAQ
What is a slot tube corner?
A 90° horizontal fitting that turns the slot tube handrail round a corner of the balustrade.
Which sizes are available?
Ø42.4, Ø48.3 and Ø60.3 mm.
Does the glass stay in the slot at the corner?
Yes – the slot continues round the corner for both panels.
Are other angles available?
For stairs use the adjustable joints MOD 1160 / 1170.
Need a price? Request a quotation with the model number, size, quantity and finish.
